Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-014-0299 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 508AG8D, 508-AG8D, SK81, SK8-1, M8373411001, M83734/11-001, 70257, 6261255, A390T303101, A390T303-101, 5935-01-014-0299, 01-014-0299, 5935010140299, 010140299
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 14, 1975 | 01-014-0299 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

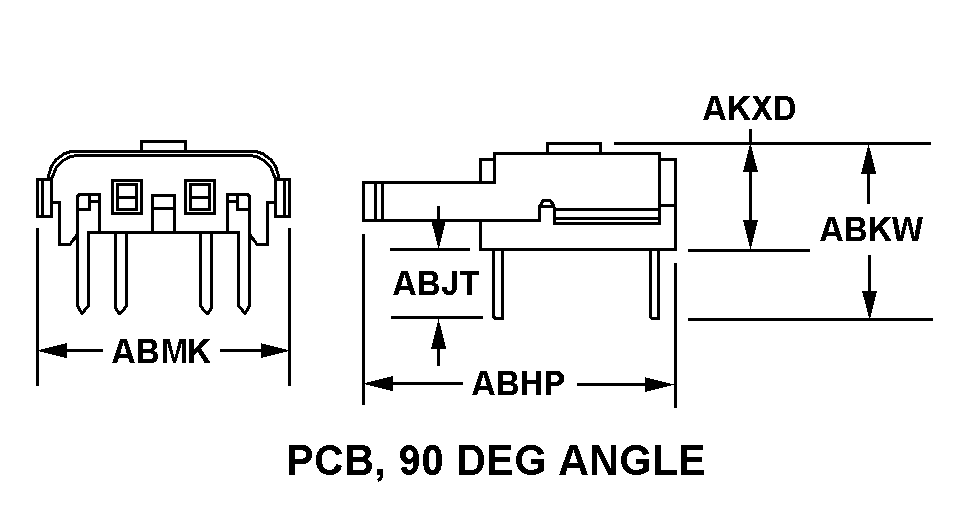

PCB, 90 DEG ANGLE
EIGHT HOLE
DUAL IN LINE
Cross Reference | NSN 5935-01-014-0299
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 508-AG8D | 91506 | AUGAT INC |
| SK8-1 | K8044 | BAUGH & WEEDON LTD |
| M83734/11-001 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 70257 | K0624 | MUIRHEAD AEROSPACE LTDDBA MUIRHEAD AVIONICS |
| 6261255 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| A390T303-101 | 10241 | TELEPHONE SYSTEMS/COMMUNICATIONS |
Technical Data | NSN 5935-01-014-0299
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUAL IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND NICKEL |
| BODY STYLE | PCB, 90 DEG ANGLE |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| OVERALL HEIGHT | 0.519 INCHES NOMINAL |
| OVERALL WIDTH | 0.400 INCHES NOMINAL |
| BODY MATERIAL | GLASS AND POLYAMIDE NYLON |
| TERMINAL TYPE AND QUANTITY | 8 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | EIGHT HOLE |
| POLARIZATION TYPE | SLOT |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.008 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
