Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-016-9621 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: SMC790734, SM-C-790734, 5935-01-016-9621, 01-016-9621, 5935010169621, 010169621
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 26, 1976 | 01-016-9621 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

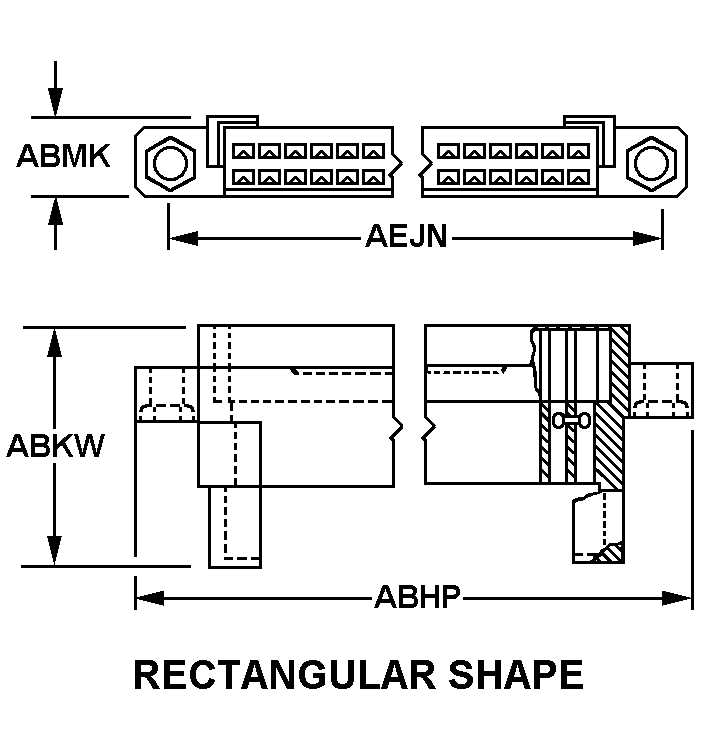

RECTANGULAR SHAPE
Cross Reference | NSN 5935-01-016-9621
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SM-C-790734 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5935-01-016-9621
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RECTANGULAR SHAPE |
| OVERALL LENGTH | 4.438 INCHES NOMINAL |
| OVERALL HEIGHT | 0.518 INCHES NOMINAL |
| OVERALL WIDTH | 0.700 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | FRICTION |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |
