Part Details | ELECTRICAL CONNECTOR SHELL
5935-01-019-7815 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Alternate Parts: G3661, G366-1, 5935-01-019-7815, 01-019-7815, 5935010197815, 010197815
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 19, 1976 | 01-019-7815 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

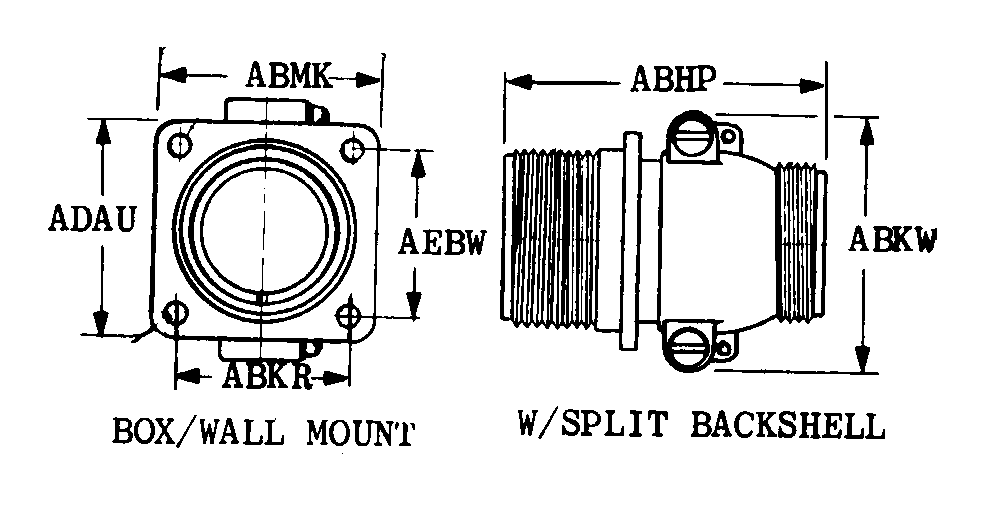

BOX/WALL MOUNT W/SPLIT BACKSHELL
Cross Reference | NSN 5935-01-019-7815
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G366-1 | 06324 | GLENAIR, INC. |
Technical Data | NSN 5935-01-019-7815
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BOX/WALL MOUNT W/SPLIT BACKSHELL |
| OVERALL LENGTH | 3.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.497 INCHES MINIMUM AND 0.503 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.250 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.750 INCHES NOMINAL |
| CABLE OPENING LENGTH | 1.250 INCHES NOMINAL |
| SIZE DESIGNATION | A |
| SPECIAL FEATURES | SURFACE COLOR IRIDESCENT GOLD |
