Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-023-6899 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 27E195, A119, A11-9, 5935-01-023-6899, 01-023-6899, 5935010236899, 010236899
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 24, 1976 | 01-023-6899 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
PCB, STANDOFF TERMINALS

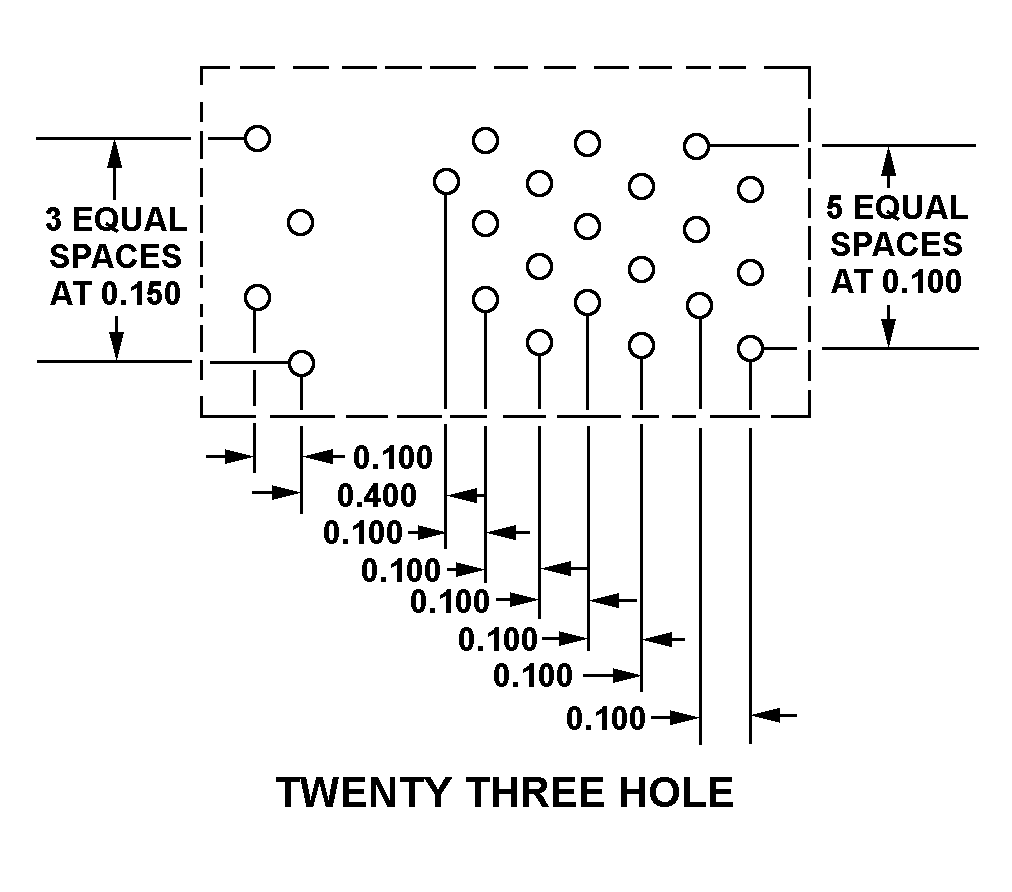

TWENTY THREE HOLE
IRREGULAR
Cross Reference | NSN 5935-01-023-6899
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 27E195 | 77342 | TE CONNECTIVITY CORPORATION |
| A11-9 | 77342 | TE CONNECTIVITY CORPORATION |
Technical Data | NSN 5935-01-023-6899
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IRREGULAR |
| ACCOMMODATED CONTACT QUANTITY | 22 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 10.0 |
| CONTACT MATERIAL | BRASS |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE |
| BODY STYLE | PCB, STANDOFF TERMINALS |
| OVERALL LENGTH | 1.380 INCHES NOMINAL |
| TERMINAL LENGTH | 0.115 INCHES NOMINAL |
| OVERALL HEIGHT | 0.530 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 23 PRINTED CIRCUIT |
| GROUND TERMINAL TYPE AND QUANTITY | 1 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | TWENTY THREE HOLE |
| POLARIZATION TYPE | CONTACT POSITION |
| SPECIFIC EQUIPMENT ACCOMMODATED | RELAY |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.022 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
