NSN 5935-01-029-5890

Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET

5935-01-029-5890 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".

Alternate Parts: CA16S202WW, CA-16S-202WW, ME2B162WGB20, ME-2B-16-2W-G-B-20, 31115134, 311151-34, 5935-01-029-5890, 01-029-5890, 5935010295890, 010295890

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59OCT 18, 197601-029-589028914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS )
REFERENCE DRAWINGS & PICTURES

TOP MOUNT

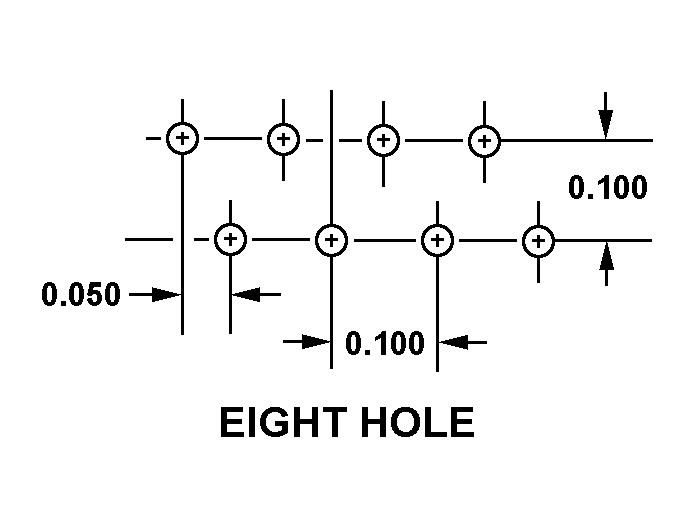

EIGHT HOLE

DUAL IN-LINE

Cross Reference | NSN 5935-01-029-5890
Part Number Cage Code Manufacturer
CA-16S-202WW52072CIRCUIT ASSEMBLY CORP
ME-2B-16-2W-G-B-2018677SCANBE MFG CODIV OF ZERO CORP
311151-3497525TRANSICO, INC.DBA EECO SWITCH
Technical Data | NSN 5935-01-029-5890
Characteristic Specifications
CONTACT POSITION ARRANGEMENT STYLE DUAL IN-LINE
ACCOMMODATED CONTACT QUANTITY16
CONTACT MATERIAL PHOSPHOR BRONZE
CONTACT SURFACE TREATMENTU0000 ANY ACCEPTABLE AND NICKEL
BODY STYLE TOP MOUNT
OVERALL LENGTH0.845 INCHES NOMINAL
TERMINAL LENGTH0.630 INCHES NOMINAL
OVERALL WIDTH0.395 INCHES MAXIMUM
BODY MATERIAL PLASTIC
TERMINAL TYPE AND QUANTITY16 WIRE WRAP
MOUNTING TYPE FOR WHICH DESIGNED PRINTED CIRCUIT
MOUNTING METHOD TERMINAL
PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE EIGHT HOLE
PRECIOUS MATERIAL GOLD
PRECIOUS MATERIAL AND WEIGHT0.016 GOLD GRAINS, TROY
PRECIOUS MATERIAL AND LOCATIONCONTACT SURFACES GOLD
