Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-035-5126 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: SD51781023, SD5178-10-23, 5935-01-035-5126, 01-035-5126, 5935010355126, 010355126
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 11, 1977 | 01-035-5126 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT, PRESS FIT

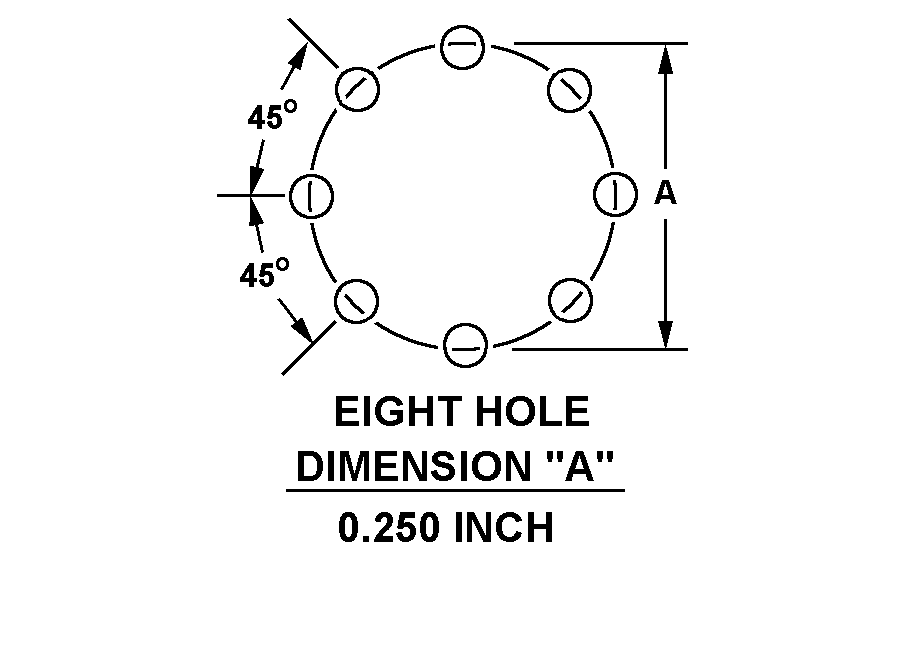

EIGHT HOLE DIMENSION "A" 0.250 INCH
CIRCULAR .250 INCH
Cross Reference | NSN 5935-01-035-5126
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SD5178-10-23 | 06776 | ROBINSON NUGENT INC |
Technical Data | NSN 5935-01-035-5126
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR .250 INCH |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT, PRESS FIT |
| TERMINAL LENGTH | 0.110 INCHES NOMINAL |
| OVERALL HEIGHT | 0.255 INCHES NOMINAL |
| OVERALL DIAMETER | 0.430 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | EIGHT HOLE DIMENSION "A" 0.250 INCH |
| POLARIZATION TYPE | SLOT |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.008 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
