Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-035-6164 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 540AG19D, 540-AG19D, 359309412, 3593094-12, GS806EG40, 582R254H20, 72122510, 721225-10, 5935-01-035-6164, 01-035-6164, 5935010356164, 010356164
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 12, 1977 | 01-035-6164 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT

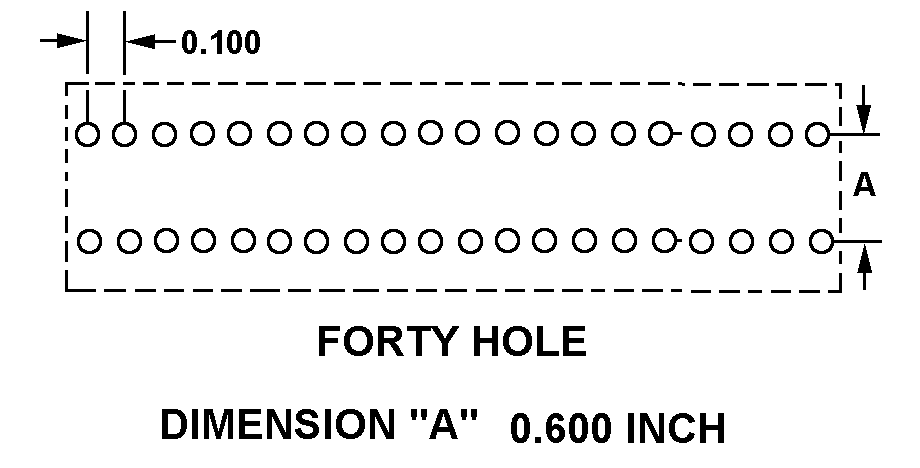

FORTY HOLE

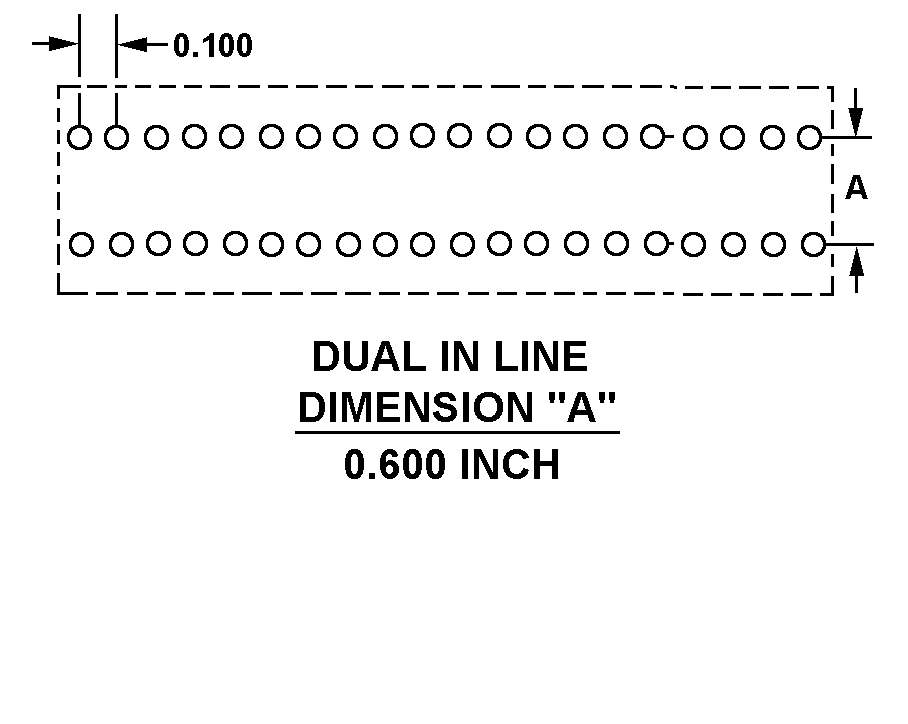

DUAL IN-LINE DIMENSION "A" 0.600 INCH
Cross Reference | NSN 5935-01-035-6164
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 540-AG19D | 91506 | AUGAT INC |
| 3593094-12 | 55974 | HONEYWELL INTL INCDEFENSE AVIONICS SYSTEMS |
| GS806EG40 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
| 582R254H20 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
| 721225-10 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5935-01-035-6164
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUAL IN-LINE DIMENSION "A" 0.600 INCH |
| ACCOMMODATED CONTACT QUANTITY | 40 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 3.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND NICKEL |
| BODY STYLE | TOP MOUNT |
| OVERALL LENGTH | 2.000 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.155 INCHES NOMINAL |
| OVERALL HEIGHT | 0.290 INCHES NOMINAL |
| OVERALL WIDTH | 0.700 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 40 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | FORTY HOLE |
| POLARIZATION TYPE | SLOT |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.040 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
