Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-035-6165 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 27E211, 0N3476761, 0N347676-1, 70309, 70-309, 6131315, 6-1313-15, 27E211, A1011, A10-11, 5935-01-035-6165, 01-035-6165, 5935010356165, 010356165
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 12, 1977 | 01-035-6165 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |

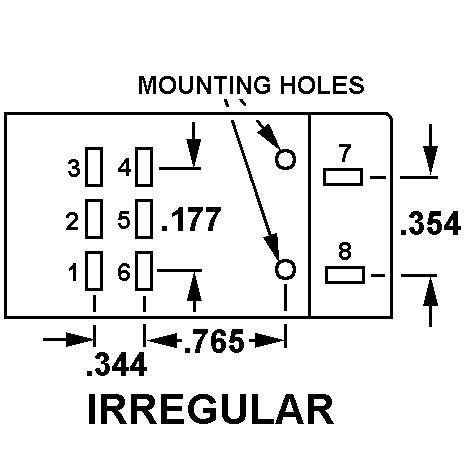

REFERENCE DRAWINGS & PICTURES
SURFACE MOUNT
TWO MOUNTING HOLES/SLOTS, IN-LINE
IRREGULAR
Cross Reference | NSN 5935-01-035-6165
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 27E211 | 77946 | AMF ELECTRONICS DIV |
| 0N347676-1 | 98230 | NATIONAL SECURITY AGENCY |
| 70-309 | 94696 | SE RELAYS LLC MAGNECRAFTDIV SE RELAYS LLC MAGNECRAFT |
| 6-1313-15 | 94696 | SE RELAYS LLC MAGNECRAFTDIV SE RELAYS LLC MAGNECRAFT |
| 27E211 | 77342 | TE CONNECTIVITY CORPORATION |
| A10-11 | 77342 | TE CONNECTIVITY CORPORATION |
Technical Data | NSN 5935-01-035-6165
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IRREGULAR |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | SURFACE MOUNT |
| OVERALL LENGTH | 1.596 INCHES NOMINAL |
| OVERALL HEIGHT | 0.350 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | TWO MOUNTING HOLES/SLOTS, IN-LINE |
| POLARIZATION TYPE | CONTACT POSITION |
