Part Details | ELECTRICAL CONNECTOR GUIDE
5935-01-036-9937 An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like.
Alternate Parts: 5160005001, 516-0005-001, 5160005001, 516-0005-001, 165091P19, 5935-01-036-9937, 01-036-9937, 5935010369937, 010369937
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 10, 1977 | 01-036-9937 | 36341 ( GUIDE, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

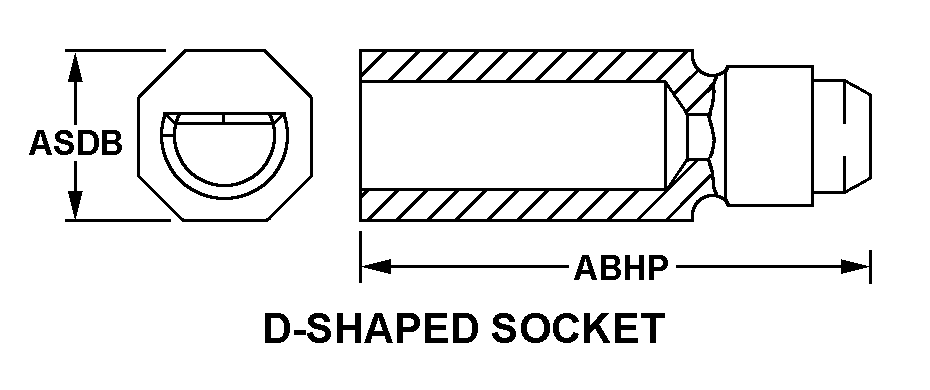

D-SHAPED SOCKET
Cross Reference | NSN 5935-01-036-9937
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 516-0005-001 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 516-0005-001 | 31413 | AMPHENOL CORPORATIONDBA AMPHENOL TCS |
| 165091P19 | 94117 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
Technical Data | NSN 5935-01-036-9937
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | D-SHAPED SOCKET |
| OVERALL LENGTH | 0.155 INCHES MINIMUM AND 0.165 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.189 INCHES MINIMUM AND 0.191 INCHES MAXIMUM |
| MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BODY |
| SPECIAL FEATURES | KEY,POLARIZING |
