Part Details | ELECTRICAL PLUG CONNECTOR
5935-01-037-5068 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 7002, 5935-01-037-5068, 01-037-5068, 5935010375068, 010375068
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 19, 1977 | 01-037-5068 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

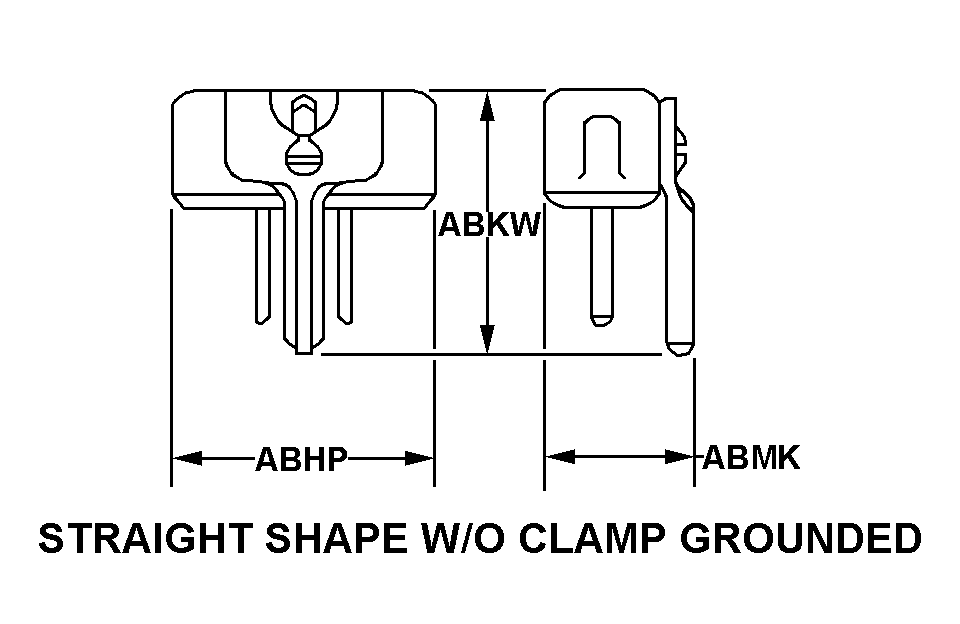

STRAIGHT SHAPE W/O CLAMP GROUNDED
Cross Reference | NSN 5935-01-037-5068
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7002 | 30525 | ROCAL CORPORATIONDBA REBLING PLASTICS |
Technical Data | NSN 5935-01-037-5068
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE W/O CLAMP GROUNDED |
| OVERALL LENGTH | 2.890 INCHES NOMINAL |
| OVERALL HEIGHT | 1.750 INCHES NOMINAL |
| MATING END QUANTITY | 1 |
