Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-040-5496 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 40655634, 406556-34, 528AG10D, 528-AG10D, 528AG1D, 528-AG1D, 528AG19D, 528-AG19D, 680426050028, 680/4/26050/028, 1062801446, 10628-01-446, 40655634, 406556-34, 30028CCB, 300-28-CCB, 1089724, 108972-4, 1062801446, 10628-01-446, 103389211, 1033892-11, 22190946, 2219-0946, C8319228B, C8319-2-28B, 2422 549 13409, 528AG19D, 528-AG19D, CM028S6G, CM0-28-S6G, 1150873519, 11508735-19, 5935-01-040-5496, 01-040-5496, 5935010405496, 010405496
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 08, 1977 | 01-040-5496 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
PCB, STANDOFF TERMINALS

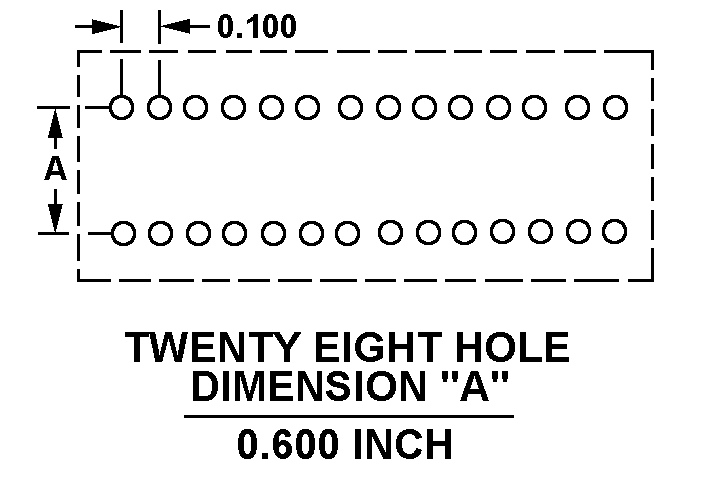

TWENTY EIGHT HOLE DIMENSION "A" 0.600 INCH
DUAL IN-LINE
Cross Reference | NSN 5935-01-040-5496
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 406556-34 | 20284 | AIMTRON SYSTEMS LLCDBA TARGET |
| 528-AG10D | 91506 | AUGAT INC |
| 528-AG1D | 91506 | AUGAT INC |
| 528-AG19D | 91509 | AUTOMATIC PRODUCTS CO |
| 680/4/26050/028 | U2982 | BAE SYSTEMS DEFENCE SYSTEMS LTD |
| 10628-01-446 | 0BET2 | CALTEX OIL /PHILLIPINES INC/ |
| 406556-34 | 12909 | CARDION INC |
| 300-28-CCB | 19112 | COOPER CROUSE-HINDS, LLCDBA GARRY ELECTRONICS |
| 108972-4 | 82340 | EDO LLC |
| 10628-01-446 | 17117 | ELECTRONIC MOLDING CORP |
| 1033892-11 | 52315 | KLEIN MARINE SYSTEMS, INC. |
| 2219-0946 | 08241 | LOCKHEED MARTIN CORPLOCKHEED MARTIN MISSION SYSTEMS |
| C8319-2-28B | 81755 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
| 2422 549 13409 | H0002 | PHILIPS ELECTRONICS NEDERLAND B.V.DBA CAMPUS |
| 528-AG19D | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| CM0-28-S6G | 15912 | THOMAS AND BETTS CORPELECTRONICS GROUP |
| 11508735-19 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-01-040-5496
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 28 |
| CONTACT MATERIAL | BRASS |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE |
| BODY STYLE | PCB, STANDOFF TERMINALS |
| OVERALL LENGTH | 35.56 MILLIMETERS MAXIMUM |
| TERMINAL LENGTH | 2.79 MILLIMETERS MINIMUM |
| OVERALL HEIGHT | 18.67 MILLIMETERS NOMINAL |
| OVERALL WIDTH | 19.05 MILLIMETERS NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 28 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | TWENTY EIGHT HOLE DIMENSION "A" 0.600 INCH |
| POLARIZATION TYPE | SLOT |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.028 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD |
