Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-041-2526 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: S0106310025, S0-1063-10025, 5935-01-041-2526, 01-041-2526, 5935010412526, 010412526
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 21, 1977 | 01-041-2526 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT W/METAL SADDLE AND BUSHINGS
RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS

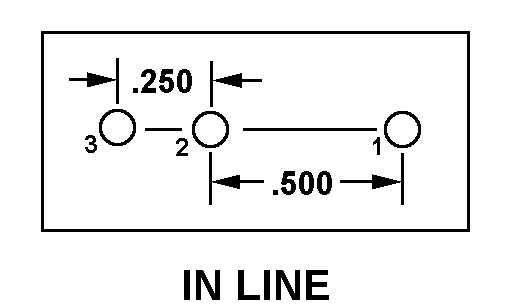

IN LINE
Cross Reference | NSN 5935-01-041-2526
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S0-1063-10025 | 58657 | LEACH INTERNATIONAL CORPORATIONDBA ESTERLINE POWER SYSTEMS |
Technical Data | NSN 5935-01-041-2526
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 7 |
| BODY STYLE | TOP MOUNT W/METAL SADDLE AND BUSHINGS |
| MOUNTING HOLE STYLE | RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.208 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.110 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.550 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.406 INCHES NOMINAL |
| TEMP RATING | -85.0 DEG CELSIUS AND 125.0 DEG CELSIUS |
