NSN 5935-01-042-2389

Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET

5935-01-042-2389 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".

Alternate Parts: 7001631, 70016-31, ME2B16WGB10, ME-2B-16-W-G-B-10, 5935-01-042-2389, 01-042-2389, 5935010422389, 010422389

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JUN 07, 197701-042-238928914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS )
REFERENCE DRAWINGS & PICTURES

TOP MOUNT

SINGLE MOUNTING HOLE/SLOT

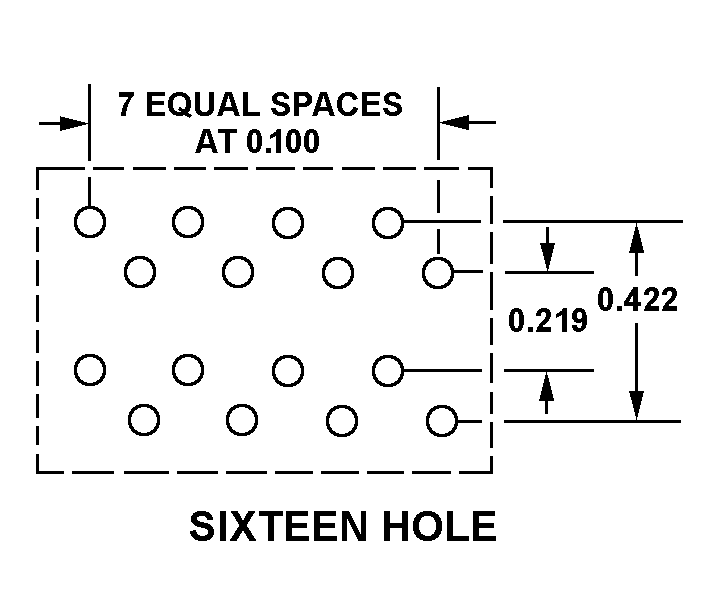

SIXTEEN HOLE

DUAL IN-LINE

Cross Reference | NSN 5935-01-042-2389
Part Number Cage Code Manufacturer
70016-3118677SCANBE MFG CODIV OF ZERO CORP
ME-2B-16-W-G-B-1018677SCANBE MFG CODIV OF ZERO CORP
Technical Data | NSN 5935-01-042-2389
Characteristic Specifications
CONTACT POSITION ARRANGEMENT STYLE DUAL IN-LINE
ACCOMMODATED CONTACT QUANTITY16
CONTACT MATERIAL PHOSPHOR BRONZE
CONTACT SURFACE TREATMENTU0000 ANY ACCEPTABLE AND NICKEL
BODY STYLE TOP MOUNT
OVERALL LENGTH0.845 INCHES NOMINAL
TERMINAL LENGTH0.635 INCHES NOMINAL
OVERALL HEIGHT0.930 INCHES NOMINAL
OVERALL WIDTH0.398 INCHES MAXIMUM
BODY MATERIAL GLASS AND POLYAMIDE NYLON
TERMINAL TYPE AND QUANTITY16 PIN
MOUNTING TYPE FOR WHICH DESIGNEDB$Z
MOUNTING METHOD UNTHREADED HOLE AND TERMINAL
MOUNTING HOLE STYLE SINGLE MOUNTING HOLE/SLOT
MOUNTING HOLE DIAMETER0.089 INCHES NOMINAL
PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE SIXTEEN HOLE
PRECIOUS MATERIAL GOLD
PRECIOUS MATERIAL AND WEIGHT0.016 GOLD GRAINS, TROY
PRECIOUS MATERIAL AND LOCATIONCONTACT SURFACES GOLD
