Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-042-4474 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 0N2281011, 0N228101-1, 5935-01-042-4474, 01-042-4474, 5935010424474, 010424474
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 10, 1977 | 01-042-4474 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT

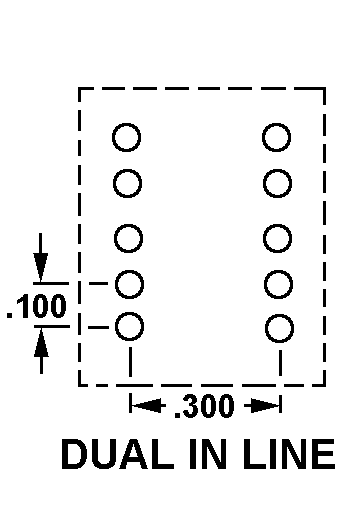

DUAL IN-LINE
Cross Reference | NSN 5935-01-042-4474
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0N228101-1 | 98230 | NATIONAL SECURITY AGENCY |
Technical Data | NSN 5935-01-042-4474
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 16 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT |
| OVERALL LENGTH | 0.845 INCHES MINIMUM AND 0.855 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.110 INCHES MINIMUM |
| OVERALL HEIGHT | 0.290 INCHES NOMINAL |
| OVERALL WIDTH | 0.435 INCHES MINIMUM AND 0.450 INCHES MAXIMUM |
| BODY MATERIAL | POLYAMIDE NYLON |
| TERMINAL TYPE AND QUANTITY | 16 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| TEST DATA DOCUMENT | 98230-0N228101-1 DRAWING (THIS IS THE BASIC GOVERNING DRAWING, SUCH AS A CONTRACTOR DRAWING, ORIGINAL EQUIPMENT MANUFACTURER DRAWING, ETC.; EXCLUDES ANY SPECIFICATION, STANDARD OR OTHER DOCUMENT THAT MAY BE REFERENCED IN A BASIC GOVERNING DRAWING) |
| PRECIOUS MATERIAL AND LOCATION | TERMINALS GOLD |
