NSN 5935-01-045-4830

Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET

5935-01-045-4830 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".

Alternate Parts: 82123011284, 821-23011-284, 5935-01-045-4830, 01-045-4830, 5935010454830, 010454830

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59AUG 02, 197701-045-483028914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS )
REFERENCE DRAWINGS & PICTURES

TOP MOUNT

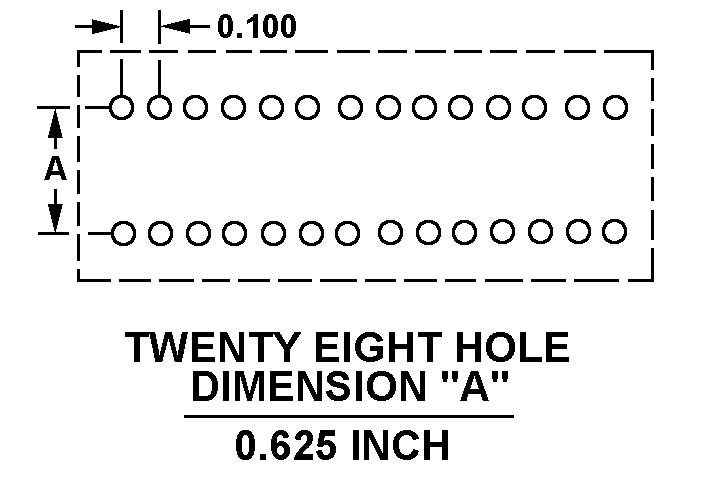

TWENTY EIGHT HOLE DIMENSION "A" 0.625 INCH

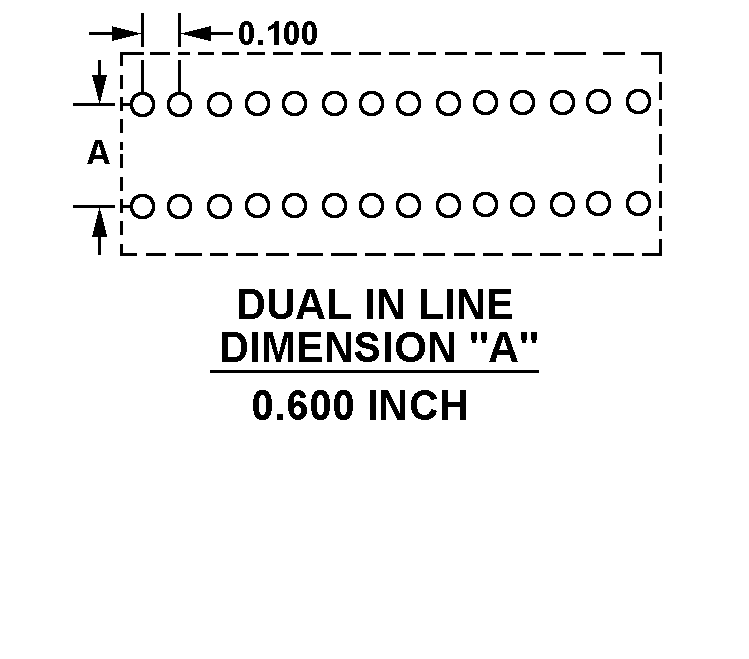

DUAL IN-LINE

Cross Reference | NSN 5935-01-045-4830
Part Number Cage Code Manufacturer
821-23011-28406473BUNKER RAMO CORP AMPHENOL NORTHAMERICAN DIV SAMS OPERATION
Technical Data | NSN 5935-01-045-4830
Characteristic Specifications
CONTACT POSITION ARRANGEMENT STYLE DUAL IN-LINE
ACCOMMODATED CONTACT QUANTITY28
CONTACT MATERIAL COPPER
CONTACT SURFACE TREATMENTU0000 ANY ACCEPTABLE
BODY STYLE TOP MOUNT
OVERALL LENGTH1.402 INCHES NOMINAL
TERMINAL LENGTH0.125 INCHES NOMINAL
OVERALL HEIGHT0.312 INCHES NOMINAL
OVERALL WIDTH0.688 INCHES NOMINAL
BODY MATERIAL PLASTIC
TERMINAL TYPE AND QUANTITY28 TAB, SOLDER LUG
MOUNTING TYPE FOR WHICH DESIGNED PRINTED CIRCUIT
MOUNTING METHOD TERMINAL
PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE TWENTY EIGHT HOLE DIMENSION "A" 0.625 INCH
POLARIZATION TYPE SLOT
PRECIOUS MATERIAL GOLD
PRECIOUS MATERIAL AND WEIGHT0.028 GOLD GRAINS, TROY
PRECIOUS MATERIAL AND LOCATIONCONTACT SURFACES GOLD
