NSN 5935-01-046-2593

Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET

5935-01-046-2593 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".

Alternate Parts: 0N2431291, 0N243129-1, CSA310022B, CSA3100-22B, 5935-01-046-2593, 01-046-2593, 5935010462593, 010462593

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59AUG 15, 197701-046-259328914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS )
REFERENCE DRAWINGS & PICTURES

TOP MOUNT

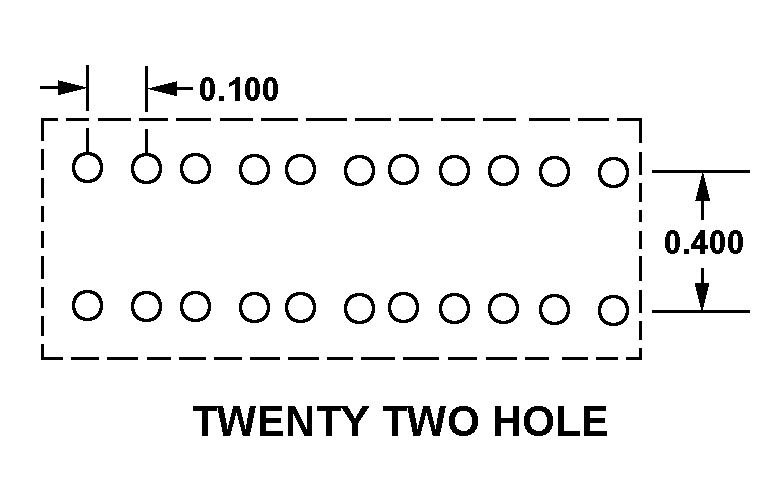

TWENTY TWO HOLE

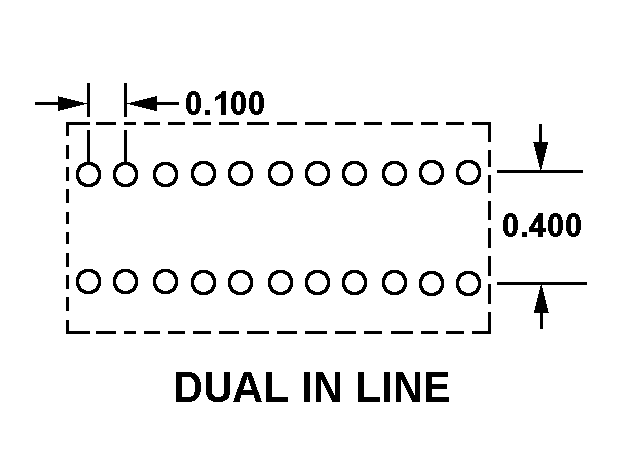

DUAL IN-LINE

Cross Reference | NSN 5935-01-046-2593
Part Number Cage Code Manufacturer
0N243129-198230NATIONAL SECURITY AGENCY
CSA3100-22B23880STANFORD APPLIED ENGINEERING INC
Technical Data | NSN 5935-01-046-2593
Characteristic Specifications
CONTACT POSITION ARRANGEMENT STYLE DUAL IN-LINE
ACCOMMODATED CONTACT QUANTITY22
CONTACT MATERIAL COPPER
CONTACT SURFACE TREATMENTU0000 ANY ACCEPTABLE
BODY STYLE TOP MOUNT
OVERALL LENGTH1.064 INCHES NOMINAL
TERMINAL LENGTH0.138 INCHES NOMINAL
OVERALL HEIGHT0.312 INCHES NOMINAL
OVERALL WIDTH0.500 INCHES NOMINAL
BODY MATERIAL PLASTIC
TERMINAL TYPE AND QUANTITY22 PIN
MOUNTING TYPE FOR WHICH DESIGNED PRINTED CIRCUIT
MOUNTING METHOD TERMINAL
PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE TWENTY TWO HOLE
POLARIZATION TYPE CONTACT SHAPE
PRECIOUS MATERIAL GOLD
PRECIOUS MATERIAL AND WEIGHT0.022 GOLD GRAINS, TROY
PRECIOUS MATERIAL AND LOCATIONCONTACT SURFACES GOLD
