Part Details | ELECTRICAL CONNECTOR GUIDE
5935-01-046-9419 An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like.
Alternate Parts: 2943495, 294349-5, 3603, M28754241, M28754/24-1, M287542401, M28754/24-01, MILC2875424, MIL-C-28754/24, M287542401, M28754/24-01, 2648703, 5935-01-046-9419, 01-046-9419, 5935010469419, 010469419
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 26, 1977 | 01-046-9419 | 36341 ( GUIDE, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

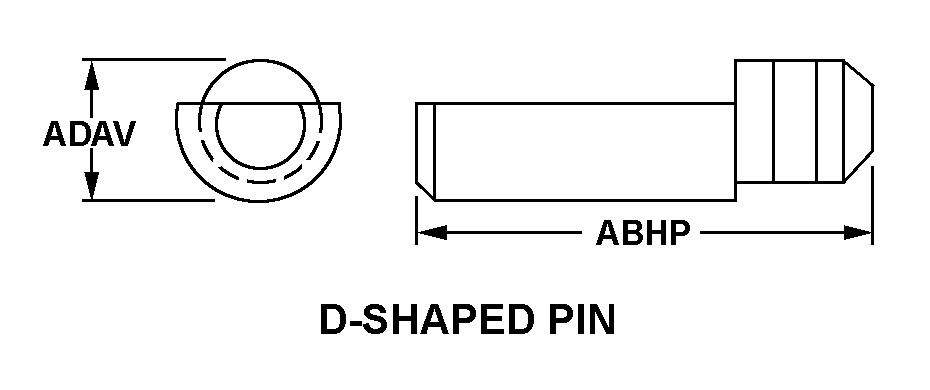

D-SHAPED PIN
Cross Reference | NSN 5935-01-046-9419
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 294349-5 | 51993 | CHARLES STARK DRAPER LABORATORY,INC., THE |
| 3603 | 16768 | ENGINEERED MECHANICAL COMPONENTS INCAFFIL OF JAMIESON MFG CO INC |
| M28754/24-1 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| M28754/24-01 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-C-28754/24 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| M28754/24-01 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 2648703 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Technical Data | NSN 5935-01-046-9419
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | D-SHAPED PIN |
| OVERALL LENGTH | 0.410 INCHES NOMINAL |
| OVERALL DIAMETER | 0.075 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BODY |
| TEST DATA DOCUMENT | 81349-MIL-C-28754 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-28754 TO 24 GOVERNMENT SPECIFICATION |
