Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-048-0067 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 451116441, 451116-441, RSE116441, 1201191, 120-119-1, 451116441, 451116-441, 5935-01-048-0067, 01-048-0067, 5935010480067, 010480067
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 17, 1977 | 01-048-0067 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP OR BOTTOM MOUNT W/MOLDED SADDLE
ROUND, W/TWO MOUNTING HOLES

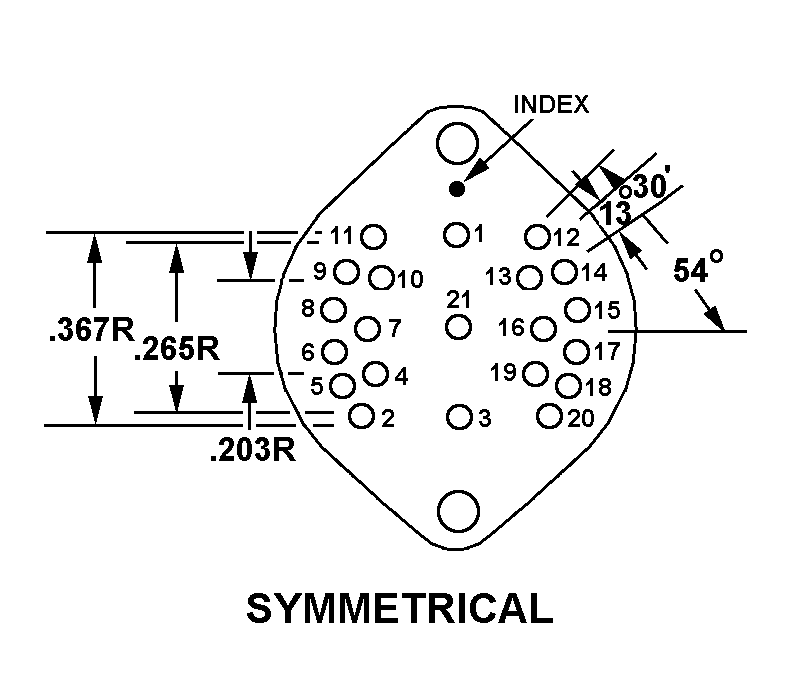

SYMMETRICAL
Cross Reference | NSN 5935-01-048-0067
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 451116-441 | 58982 | AMPHENOL PCD, INC. |
| RSE116441 | 58982 | AMPHENOL PCD, INC. |
| 120-119-1 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
| 451116-441 | 03743 | EGS ELECTRICAL GROUPAPPLETON DIV |
Technical Data | NSN 5935-01-048-0067
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | SYMMETRICAL |
| ACCOMMODATED CONTACT QUANTITY | 21 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 7.5 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE |
| BODY STYLE | TOP OR BOTTOM MOUNT W/MOLDED SADDLE |
| OVERALL LENGTH | 1.770 INCHES MINIMUM AND 1.790 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.890 INCHES MAXIMUM |
| OVERALL WIDTH | 0.990 INCHES MINIMUM AND 1.010 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.088 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 21 CRIMP |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING HOLE STYLE | ROUND, W/TWO MOUNTING HOLES |
| MOUNTING HOLE DIAMETER | 0.142 INCHES MINIMUM AND 0.152 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 0.980 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.401 INCHES MINIMUM AND 1.411 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION TYPE | COLORED DOT |
| SPECIFIC EQUIPMENT ACCOMMODATED | RELAY |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.021 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
