Part Details | ELECTRICAL CONNECTOR END SEAL PLUG
5935-01-050-2170 A small, thin, cylindrically shaped item having a straight, smooth, solid, nonmetallic body. It may have a boss on one or both ends. It is specifically designed for sealing contact holes against moisture, dust, and the like, in electrical connectors. Excludes PLUG, END SEAL, ELECTRICAL CONDUIT; and PIN, STRAIGHT, HEADLESS.
Alternate Parts: 1678684, 167-8684, 10182414, 5935-01-050-2170, 01-050-2170, 5935010502170, 010502170
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 01, 1977 | 01-050-2170 | 27129 ( PLUG, END SEAL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

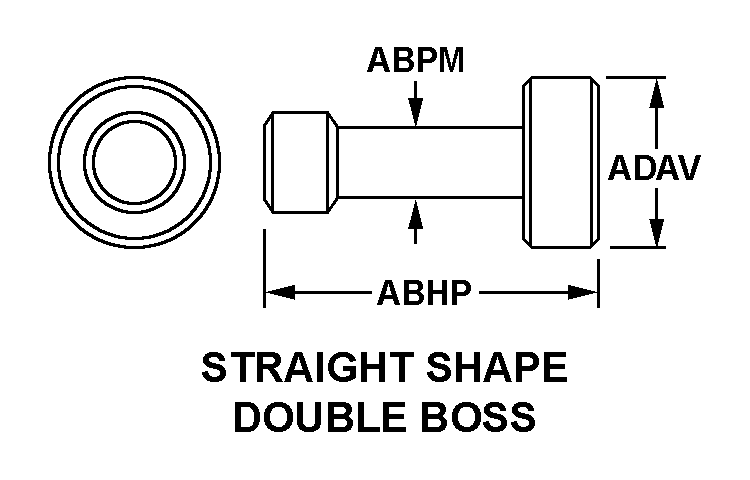

STRAIGHT SHAPE DOUBLE BOSS
Cross Reference | NSN 5935-01-050-2170
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 167-8684 | 99747 | TELEDYNE REYNOLDS, INC. |
| 10182414 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-01-050-2170
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT SHAPE DOUBLE BOSS |
| OVERALL LENGTH | 0.595 INCHES NOMINAL |
| BODY DIAMETER | 0.061 INCHES MINIMUM AND 0.063 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.140 INCHES MINIMUM AND 0.143 INCHES MAXIMUM |
| MATERIAL | PLASTIC |
