Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-058-1256 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 12000549, 1200-0549, 12000549, 1200-0549, 12000549, 1200-0549, 5837736, 583773-6, 5935-01-058-1256, 01-058-1256, 5935010581256, 010581256
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 23, 1978 | 01-058-1256 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
PCB, STANDOFF TERMINALS

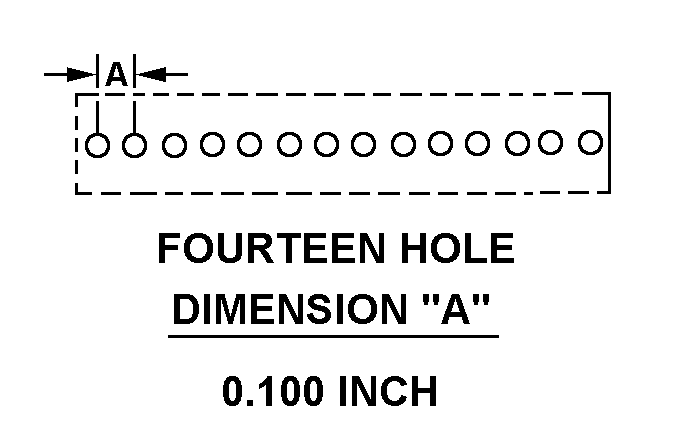

FOURTEEN HOLE

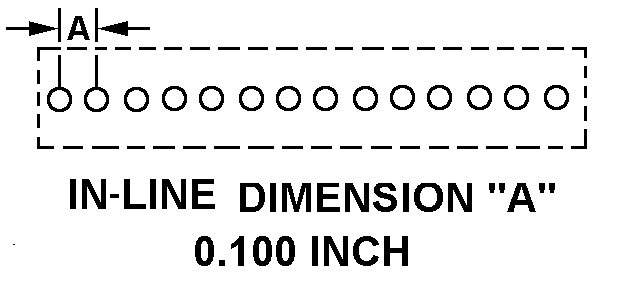

IN-LINE
Cross Reference | NSN 5935-01-058-1256
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1200-0549 | F5056 | HEWLETT-PACKARD CENTRE COMPETENCEFRANCE |
| 1200-0549 | 28480 | HEWLETT-PACKARD COMPANYDBA HP |
| 1200-0549 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 583773-6 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5935-01-058-1256
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | TIN |
| BODY STYLE | PCB, STANDOFF TERMINALS |
| OVERALL LENGTH | 1.424 INCHES NOMINAL |
| TERMINAL LENGTH | 0.115 INCHES NOMINAL |
| OVERALL HEIGHT | 0.275 INCHES NOMINAL |
| OVERALL WIDTH | 0.170 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | FOURTEEN HOLE |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| END ITEM IDENTIFICATION | LANDING CRAFT AIR CUSHION (LCAC); STURGEON CLASS SSN (637); FORRESTAL CLASS CV; TICONDEROGA CLASS CG (47); KIDD CLASS DDG; LOS ANGELES CLASS SSN (688); VIRGINIA CLASS CGN (41); SPRUANCE CLASS DD (963); NIMITZ CLASS CVN |
