Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-062-2377 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 78S12, 78-S12, 78S12, 78-S12, 7574002P001, 5935-01-062-2377, 01-062-2377, 5935010622377, 010622377
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 13, 1978 | 01-062-2377 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT W/RETAINER RING GROOVE
ROUND, BODY

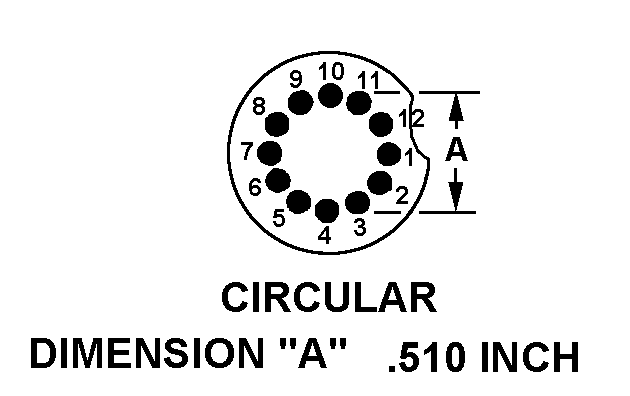

CIRCULAR
Cross Reference | NSN 5935-01-062-2377
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 78-S12 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 78-S12 | 02660 | AMPHENOL CORPSPECTRA-STRIP/ITD |
| 7574002P001 | 94117 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
Technical Data | NSN 5935-01-062-2377
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 12 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/RETAINER RING GROOVE |
| OVERALL HEIGHT | 0.875 INCHES NOMINAL |
| OVERALL DIAMETER | 1.250 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.730 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 12 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | RETAINER RING |
| MOUNTING HOLE STYLE | ROUND, BODY |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.172 INCHES NOMINAL |
| POLARIZATION TYPE | CENTER KEY HOLE |
| FURNISHED ITEMS AND QUANTITY | 1 RETAINING RING |
