Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-066-1906 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 412419, 340AG38D, 340AG38D, 340-AG-38D, 412419, 5935-01-066-1906, 01-066-1906, 5935010661906, 010661906
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 04, 1978 | 01-066-1906 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
PCB, STANDOFF TERMINALS
FORTY HOLE

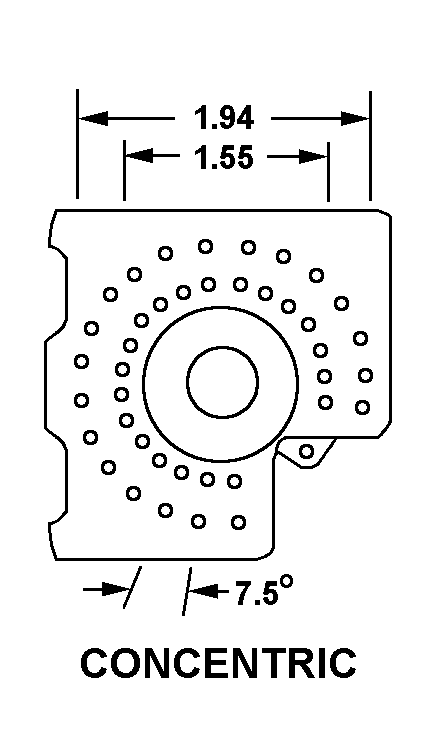

CONCENTRIC
Cross Reference | NSN 5935-01-066-1906
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 412419 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| 340AG38D | 91506 | AUGAT INC |
| 340-AG-38D | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 412419 | 57712 | TELEMECHANICS INC |
Technical Data | NSN 5935-01-066-1906
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CONCENTRIC |
| ACCOMMODATED CONTACT QUANTITY | 40 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND NICKEL |
| BODY STYLE | PCB, STANDOFF TERMINALS |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| TERMINAL LENGTH | 0.130 INCHES NOMINAL |
| OVERALL HEIGHT | 0.355 INCHES MAXIMUM |
| OVERALL WIDTH | 0.700 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 40 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | FORTY HOLE |
| POLARIZATION TYPE | SLOT |
| SPECIFIC EQUIPMENT ACCOMMODATED | INTEGRATED CIRCUIT |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.040 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
