Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-067-1553 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 532AG10F, 532-AG10F, 30032AAB, 300-32-AA-B, 1063203446, 10632-03-446, 532AG10F, 532-AG10F, 5935-01-067-1553, 01-067-1553, 5935010671553, 010671553
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 25, 1978 | 01-067-1553 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT

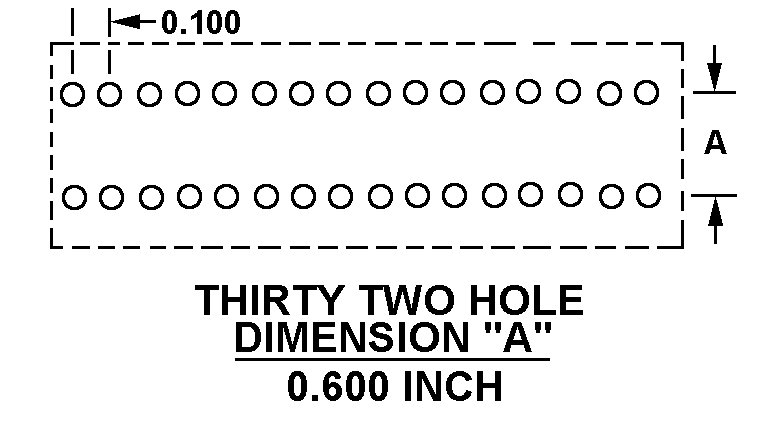

THIRTY TWO HOLE DIMENSION "A" 0.600 INCH

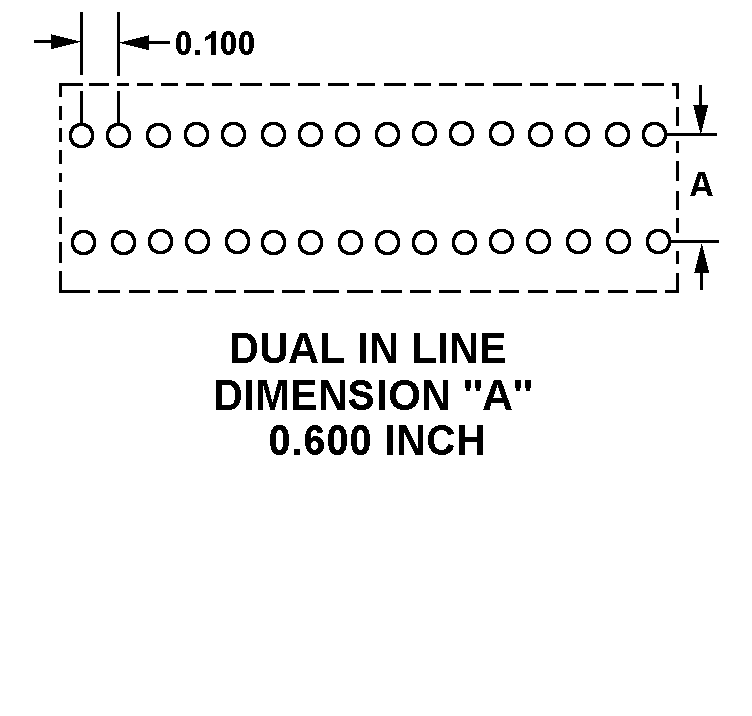

DUAL IN-LINE
Cross Reference | NSN 5935-01-067-1553
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 532-AG10F | 91506 | AUGAT INC |
| 300-32-AA-B | 19112 | COOPER CROUSE-HINDS, LLCDBA GARRY ELECTRONICS |
| 10632-03-446 | 17117 | ELECTRONIC MOLDING CORP |
| 532-AG10F | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5935-01-067-1553
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 32 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND TIN |
| BODY STYLE | TOP MOUNT |
| OVERALL LENGTH | 1.600 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.510 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.735 INCHES MAXIMUM |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 32 WIRE WRAP |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | THIRTY TWO HOLE DIMENSION "A" 0.600 INCH |
| POLARIZATION TYPE | SLOT |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.032 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
