Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-068-0186 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: INC286WBG, INC-286-WB-G, ICN286WBG, ICN-286-WB-G, 5935-01-068-0186, 01-068-0186, 5935010680186, 010680186
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 14, 1978 | 01-068-0186 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT
TWO MOUNTING HOLES/SLOTS, IN-LINE

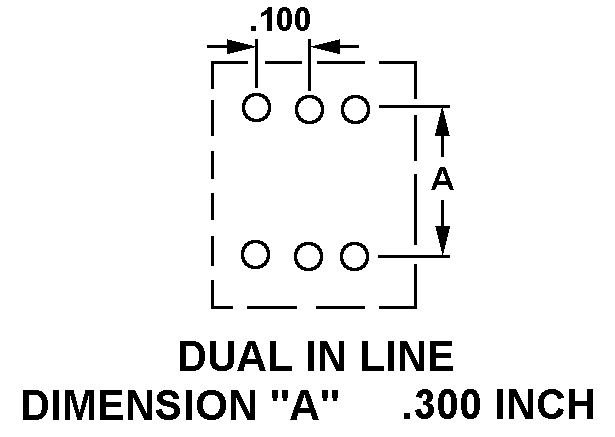

DUAL IN-LINE
Cross Reference | NSN 5935-01-068-0186
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| INC-286-WB-G | 06776 | ROBINSON NUGENT INC |
| ICN-286-WB-G | 06776 | ROBINSON NUGENT INC |
Technical Data | NSN 5935-01-068-0186
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 28 |
| CONTACT MATERIAL | U0000 ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | NICKEL |
| BODY STYLE | TOP MOUNT |
| OVERALL LENGTH | 1.395 INCHES NOMINAL |
| TERMINAL LENGTH | 0.625 INCHES NOMINAL |
| OVERALL HEIGHT | 0.875 INCHES NOMINAL |
| OVERALL WIDTH | 0.740 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 28 WIRE WRAP |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | TWO MOUNTING HOLES/SLOTS, IN-LINE |
| MOUNTING HOLE DIAMETER | 0.120 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.500 INCHES NOMINAL |
