Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-068-0788 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 27E129, 5935-01-068-0788, 01-068-0788, 5935010680788, 010680788
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 15, 1978 | 01-068-0788 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
SURFACE MOUNT

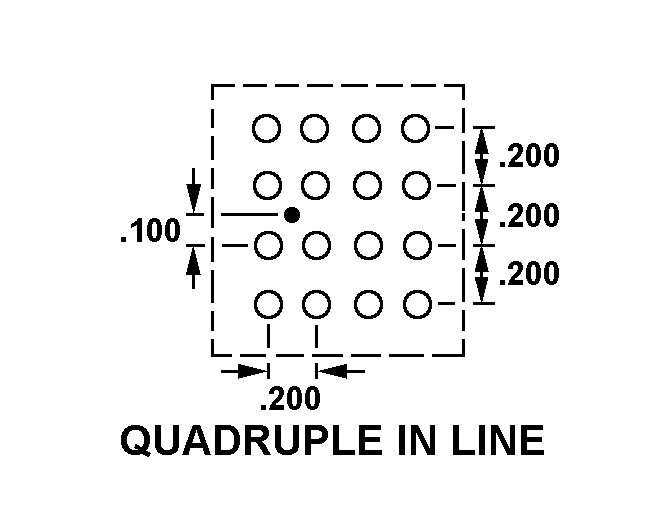

QUADRUPLE IN LINE
Cross Reference | NSN 5935-01-068-0788
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 27E129 | 77342 | TE CONNECTIVITY CORPORATION |
Technical Data | NSN 5935-01-068-0788
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | QUADRUPLE IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 16 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | SURFACE MOUNT |
| OVERALL LENGTH | 1.184 INCHES NOMINAL |
| OVERALL HEIGHT | 0.350 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 16 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| COMPONENT SHIELD MOUNTING METHOD | SPRING |
| FURNISHED ITEMS AND QUANTITY | 1 GROUNDING STRAP |
