Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-068-9357 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 13315105, 133-151-05, 5935-01-068-9357, 01-068-9357, 5935010689357, 010689357
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 06, 1978 | 01-068-9357 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |

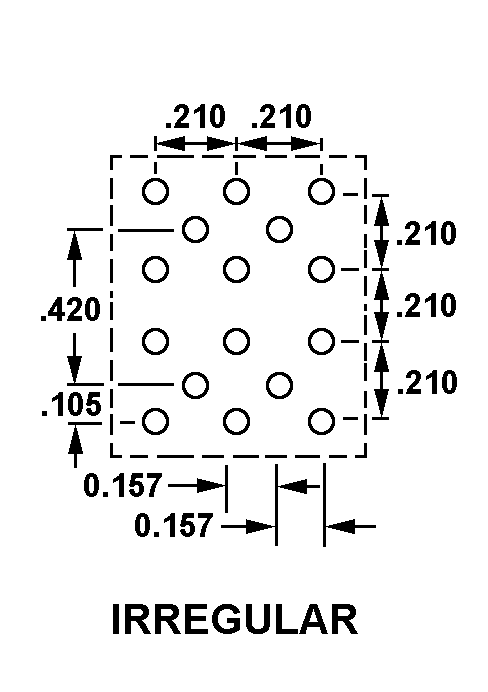

REFERENCE DRAWINGS & PICTURES
IRREGULAR
RECTANGULAR, W/FOUR MOUNTING HOLES/SLOTS
IRREGULAR
Cross Reference | NSN 5935-01-068-9357
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 133-151-05 | 26742 | METHODE ELECTRONICS INC |
Technical Data | NSN 5935-01-068-9357
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IRREGULAR |
| ACCOMMODATED CONTACT QUANTITY | 2 |
| MISSING CONTACT DESIGNATION | 15TH CONTACT POSITION AND 16TH CONTACT POSITION |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND NICKEL |
| BODY STYLE | IRREGULAR |
| OVERALL HEIGHT | 1.062 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 SOLDER WELL |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | RECTANGULAR, W/FOUR MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.156 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.437 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 1.359 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT SHAPE |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.014 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
