Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-069-9477 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: CS010, CS0-10, MS903358, MS90335-8, MILP7788, MIL-P-7788, MILDTL323856, MIL-DTL-32385/6, MILDTL32385, MIL-DTL-32385, MS903358, MS90335-8, 5935-01-069-9477, 01-069-9477, 5935010699477, 010699477
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 29, 1978 | 01-069-9477 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
BOTTOM MOUNT, RADIAL TERMINALS
SLOT FOUR MOUNTING HOLES/SLOTS ON BOLT CIRCLE
FOUR HOLE

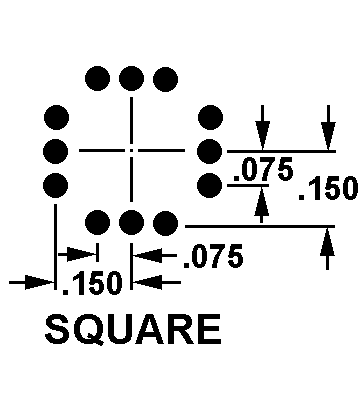

SQUARE
Cross Reference | NSN 5935-01-069-9477
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CS0-10 | 06097 | HOFFMAN ENGINEERING LLC |
| MS90335-8 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-P-7788 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-DTL-32385/6 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-DTL-32385 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MS90335-8 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 5935-01-069-9477
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | SQUARE |
| ACCOMMODATED CONTACT QUANTITY | 4 |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | BOTTOM MOUNT, RADIAL TERMINALS |
| BODY DIAMETER | 0.249 INCHES MINIMUM AND 0.251 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.550 INCHES MAXIMUM |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.093 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
| BODY MATERIAL | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 4 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | BODY THROUGH HOLE |
| MOUNTING HOLE STYLE | SLOT FOUR MOUNTING HOLES/SLOTS ON BOLT CIRCLE |
| MOUNTING SLOT WIDTH | 0.018 INCHES NOMINAL |
| MOUNTING BOLT CIRCLE DIAMETER | 0.249 INCHES MINIMUM AND 0.251 INCHES MAXIMUM |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | FOUR HOLE |
| COMPONENT SHIELD MOUNTING METHOD | SCREW |
| POLARIZATION TYPE | CENTER KEY HOLE |
| TEST DATA DOCUMENT | 81349-MIL-P-7788 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| SPECIFICATION/STANDARD DATA | 96906-MS90335-8 GOVERNMENT STANDARD |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.005 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
