Part Details | ELECTRICAL PLUG CONNECTOR
5935-01-070-5954 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 2020014, 202-0014, 10123, 1000250000, 10-0025-0000, 10084352, 5935-01-070-5954, 01-070-5954, 5935010705954, 010705954
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 14, 1979 | 01-070-5954 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

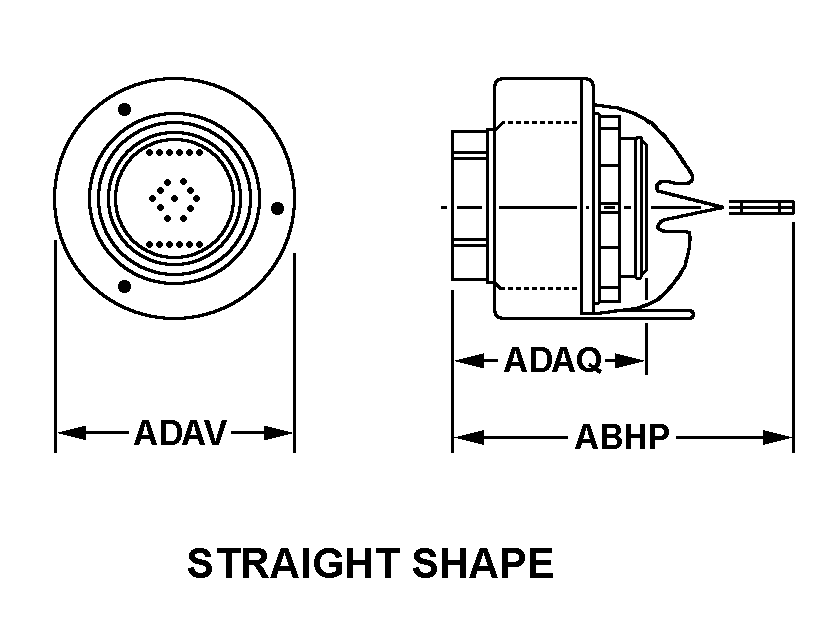

STRAIGHT SHAPE
Cross Reference | NSN 5935-01-070-5954
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 202-0014 | 06473 | BUNKER RAMO CORP AMPHENOL NORTHAMERICAN DIV SAMS OPERATION |
| 10123 | 62765 | CELLTRON INC |
| 10-0025-0000 | 05574 | COOPER INTERCONNECT, INC. |
| 10084352 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-01-070-5954
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE |
| BODY LENGTH | 1.978 INCHES MINIMUM AND 2.012 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.826 INCHES MINIMUM AND 1.830 INCHES MAXIMUM |
| MATING END QUANTITY | 1 |
| END ITEM IDENTIFICATION | HELICOPTER, COBRA/TOW, AH SERIES; MISSILE, TOW (GROUND - TOW I & II) |
