Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-072-0273 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 403764, 403764, 5935-01-072-0273, 01-072-0273, 5935010720273, 010720273
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 21, 1979 | 01-072-0273 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT W/METAL SADDLE

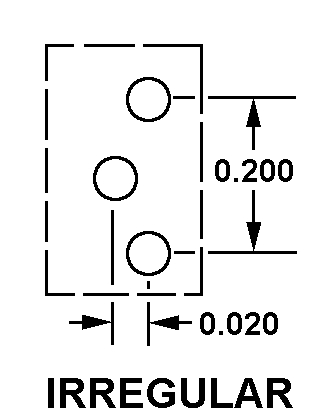

IRREGULAR
Cross Reference | NSN 5935-01-072-0273
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 403764 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| 403764 | 57712 | TELEMECHANICS INC |
Technical Data | NSN 5935-01-072-0273
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IRREGULAR |
| ACCOMMODATED CONTACT QUANTITY | 3 |
| BODY STYLE | TOP MOUNT W/METAL SADDLE |
| OVERALL LENGTH | 1.562 INCHES NOMINAL |
| OVERALL HEIGHT | 0.500 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.312 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
