Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-072-3906 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: SMS36RE3D28, SMS36RE3D27, 5935-01-072-3906, 01-072-3906, 5935010723906, 010723906
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 28, 1979 | 01-072-3906 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

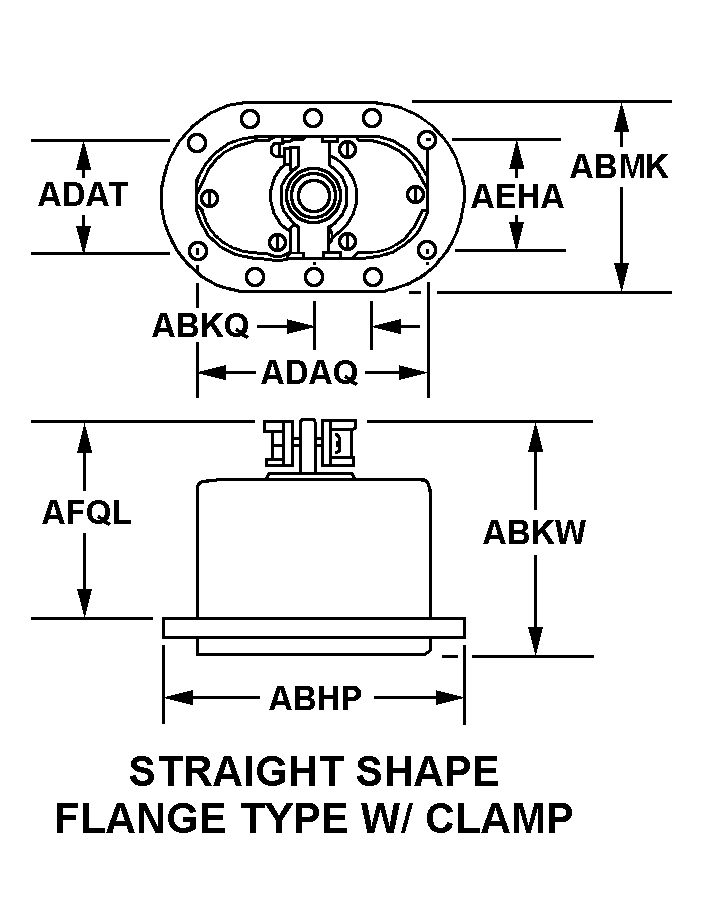

STRAIGHT SHAPE FLANGE TYPE W/CLAMP
Cross Reference | NSN 5935-01-072-3906
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SMS36RE3D28 | 09922 | SOURIAU USA, INC. |
| SMS36RE3D27 | 09922 | SOURIAU USA, INC. |
Technical Data | NSN 5935-01-072-3906
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE FLANGE TYPE W/CLAMP |
| OVERALL HEIGHT | 2.657 INCHES NOMINAL |
| OVERALL WIDTH | 1.960 INCHES NOMINAL |
| BODY WIDTH | 1.030 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO REAR FACE | 2.216 INCHES MINIMUM AND 2.256 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.130 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | SPRING FRICTION |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.275 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |
| PRECIOUS MATERIAL | GOLD AND SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.036 GOLD GRAINS, TROY AND 0.036 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
