Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-074-4503 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 71171071, 7117107-1, X1050, 11781386, 5935-01-074-4503, 01-074-4503, 5935010744503, 010744503
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 31, 1979 | 01-074-4503 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT W/MOLDED SADDLE
RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS

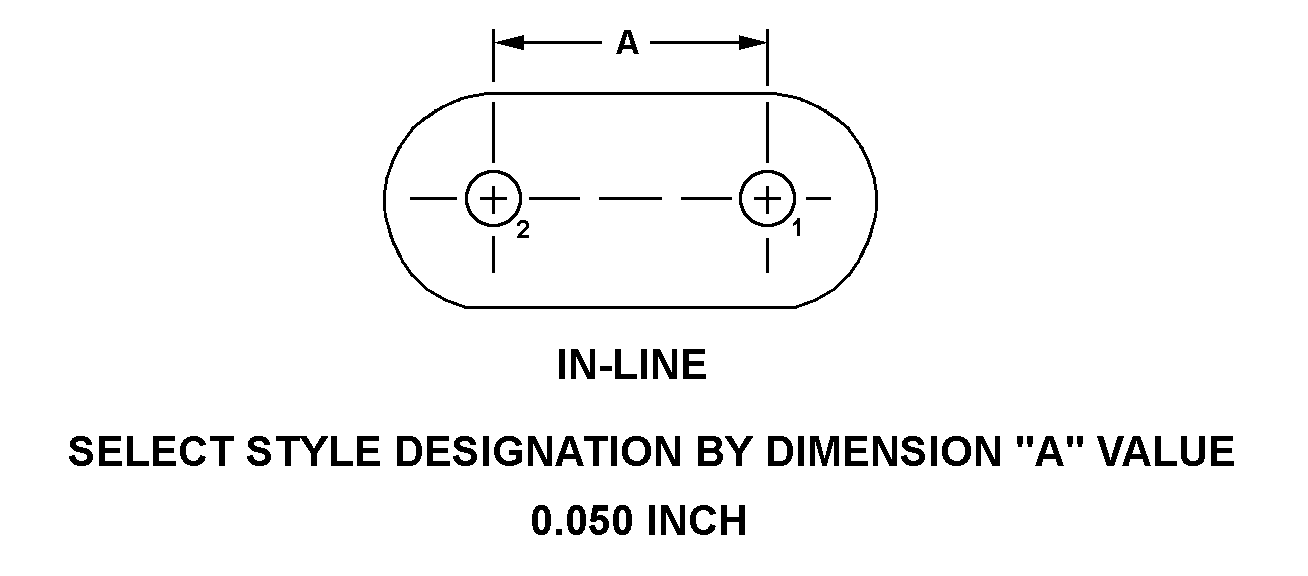

IN LINE
Cross Reference | NSN 5935-01-074-4503
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7117107-1 | 17863 | LITTON SYSTEMS INCGUIDANCE AND CONTROL SYSTEMS DIV |
| X1050 | 28564 | REFAC ELECTRONICS CORP |
| 11781386 | 19200 | US ARMY ARDEC RDECOM |
Technical Data | NSN 5935-01-074-4503
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 9 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 40.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND COPPER |
| BODY STYLE | TOP MOUNT W/MOLDED SADDLE |
| OVERALL LENGTH | 0.870 INCHES MINIMUM AND 0.880 INCHES MAXIMUM |
| OVERALL HEIGHT | 19.000 INCHES NOMINAL |
| OVERALL WIDTH | 0.220 INCHES MINIMUM AND 0.230 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.325 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 10 WIRE LEAD |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.088 INCHES MINIMUM AND 0.098 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.870 INCHES MINIMUM AND 0.880 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.682 INCHES MINIMUM AND 0.692 INCHES MAXIMUM |
| SHORTEST BODY MOUNTING HOLE ACCOMMODATION LENGTH | 0.120 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| LONGEST BODY MOUNTING HOLE ACCOMMODATION LENGTH | 0.220 INCHES MINIMUM AND 0.230 INCHES MAXIMUM |
