Part Details | ELECTRICAL PLUG CONNECTOR BODY
5935-01-074-8629 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 71801191, 7180119-1, 802323001, 802323-001, 145930001, 145930-001, 03091011, 03-09-1011, 5935-01-074-8629, 01-074-8629, 5935010748629, 010748629
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 09, 1979 | 01-074-8629 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

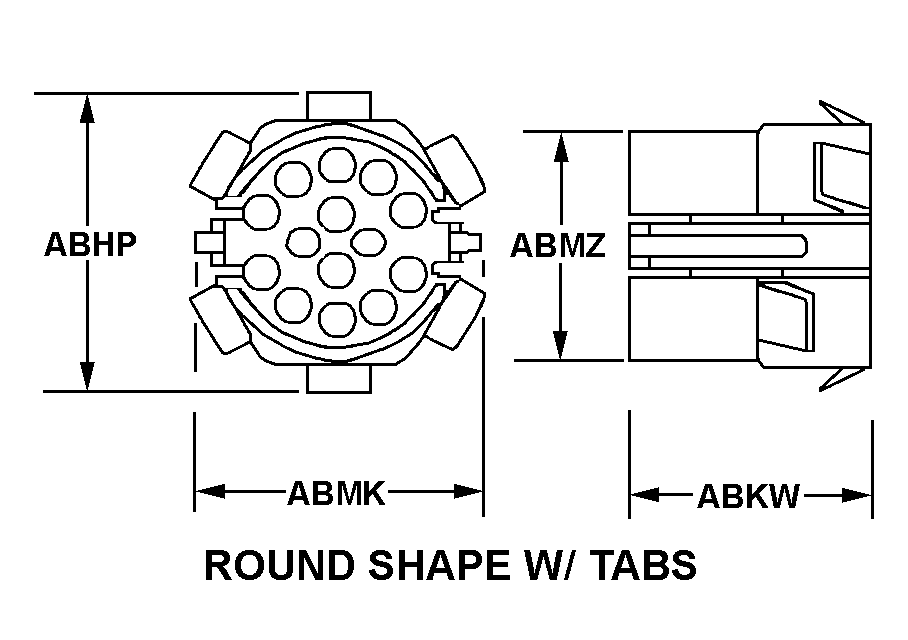

ROUND SHAPE W/TABS
Cross Reference | NSN 5935-01-074-8629
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7180119-1 | 10236 | ELECTRODYNAMICS, INC.DBA L-3 COMMUNICATIONS |
| 802323-001 | 53938 | EVANS & SUTHERLAND COMPUTERCORPORATION |
| 145930-001 | 91417 | HARRIS CORPORATIONDBA GOVERNMENT COMMUNICATIONS |
| 03-09-1011 | 1UX99 | MOLEX INCORPORATEDDIV MOLEX CONNECTOR CORPORATION |
Technical Data | NSN 5935-01-074-8629
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ROUND SHAPE W/TABS |
| OVERALL LENGTH | 0.358 INCHES NOMINAL |
| OVERALL HEIGHT | 0.968 INCHES NOMINAL |
| OVERALL WIDTH | 0.358 INCHES NOMINAL |
| DIAMETER | 0.358 INCHES NOMINAL |
| BODY LENGTH | 0.358 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | DETENT |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |
| SPECIAL FEATURES | WITH LOCKING EARS |
