5935-01-081-0955 An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like.
Alternate Parts: 5640041000, 564-0041-000, 5640041000, 564-0041-000, 0970030000, 097-0030-000, 907013102, 907013-102, 2137034G002, 581R848H03, 5935-01-081-0955, 01-081-0955, 5935010810955, 010810955
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 08, 1979 | 01-081-0955 | 36341 ( GUIDE, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

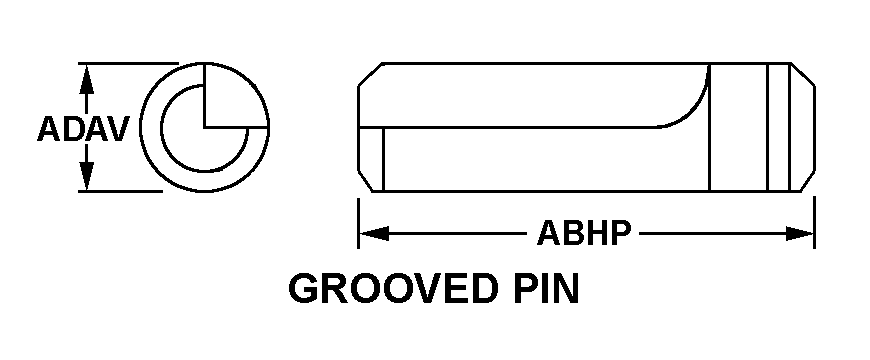

GROOVED PIN
Cross Reference | NSN 5935-01-081-0955
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 564-0041-000 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 564-0041-000 | 31413 | AMPHENOL CORPORATIONDBA AMPHENOL TCS |
| 097-0030-000 | 05041 | DCX-CHOL ENTERPRISES, INC.DBA MASTERITE DIVISION |
| 907013-102 | 05257 | GENERAL DYNAMICS LAND SYSTEMS-CANADA CORPORATION |
| 2137034G002 | 28527 | HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, INTEGRATED |
| 581R848H03 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
Technical Data | NSN 5935-01-081-0955
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | GROOVED PIN |
| OVERALL LENGTH | 0.410 INCHES NOMINAL |
| OVERALL DIAMETER | 0.101 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 SNAP-IN |
