5935-01-082-6048 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 12000552, 1200-0552, 12000552, 1200-0552, 0002808, ICN406BS4G, ICN-406B-S4-G, 5935-01-082-6048, 01-082-6048, 5935010826048, 010826048
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 06, 1979 | 01-082-6048 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT

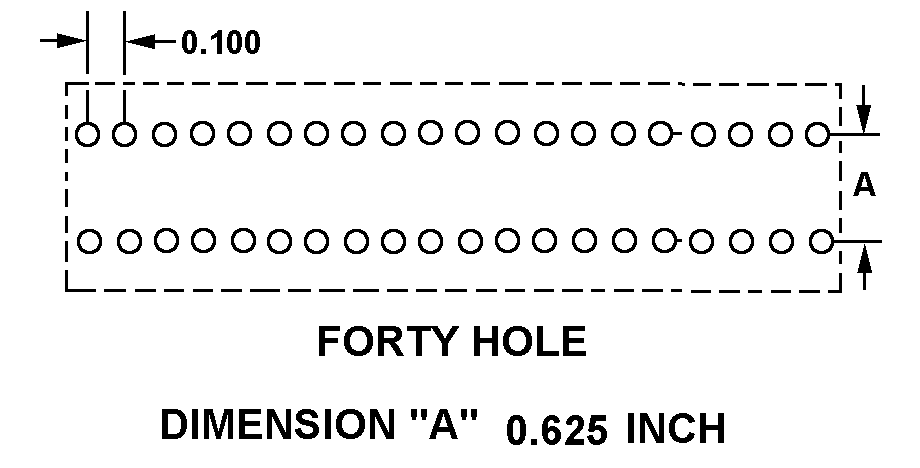

FORTY HOLE

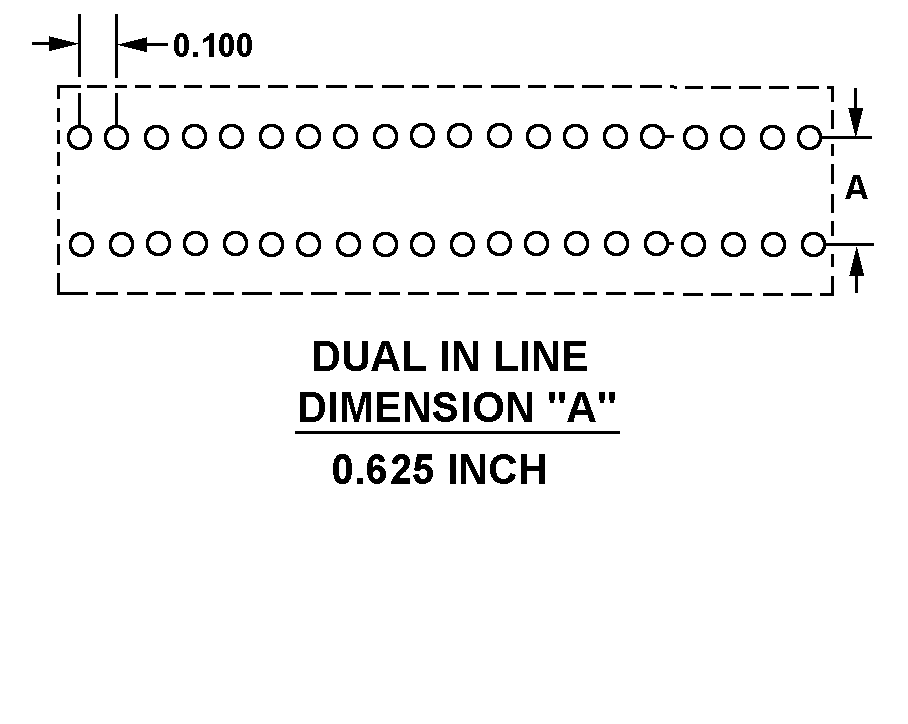

DUAL IN-LINE DIMENSION "A" 0.625 INCH
Cross Reference | NSN 5935-01-082-6048
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1200-0552 | 28480 | HEWLETT-PACKARD COMPANYDBA HP |
| 1200-0552 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 0002808 | 06776 | ROBINSON NUGENT INC |
| ICN-406B-S4-G | 06776 | ROBINSON NUGENT INC |
Technical Data | NSN 5935-01-082-6048
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUAL IN-LINE DIMENSION "A" 0.625 INCH |
| ACCOMMODATED CONTACT QUANTITY | 40 |
| CONTACT MATERIAL | COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.375 INCHES NOMINAL |
| OVERALL WIDTH | 0.781 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 40 SOLDER WELL |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | FORTY HOLE |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.040 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
