Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-083-0032 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 347612, SMS6RE5S4, 347612, 5935-01-083-0032, 01-083-0032, 5935010830032, 010830032
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 14, 1979 | 01-083-0032 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT W/TABS
TWO MOUNTING HOLES/SLOTS, DIAGONAL

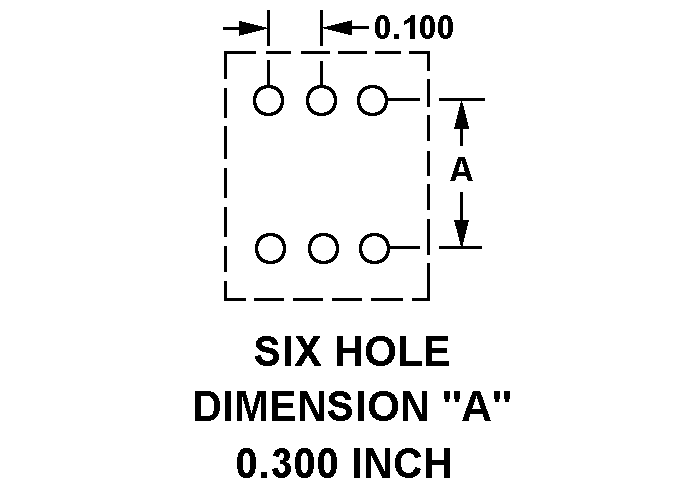

SIX HOLE DIMENSION "A" 0.300 INCH
DUAL IN-LINE
Cross Reference | NSN 5935-01-083-0032
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 347612 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| SMS6RE5S4 | 09922 | SOURIAU USA, INC. |
| 347612 | 57712 | TELEMECHANICS INC |
Technical Data | NSN 5935-01-083-0032
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 6 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/TABS |
| OVERALL LENGTH | 0.938 INCHES NOMINAL |
| OVERALL HEIGHT | 0.688 INCHES NOMINAL |
| OVERALL WIDTH | 0.625 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 6 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | B$Z |
| MOUNTING METHOD | TERMINAL AND UNTHREADED HOLE |
| MOUNTING HOLE STYLE | TWO MOUNTING HOLES/SLOTS, DIAGONAL |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 0.844 INCHES NOMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | SIX HOLE DIMENSION "A" 0.300 INCH |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.030 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
