Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-085-3901 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 706381 PIECE 88, LS102012B, LS10201-2B, M128834002, M12883/40-02, MILS1288340, MIL-S-12883/40, MILDTL1288340, MIL-DTL-12883/40, 5935-01-085-3901, 01-085-3901, 5935010853901, 010853901
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 07, 1979 | 01-085-3901 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
RECTANGULAR
RECTANGULAR, W/THREE MOUNTING HOLES/SLOTS

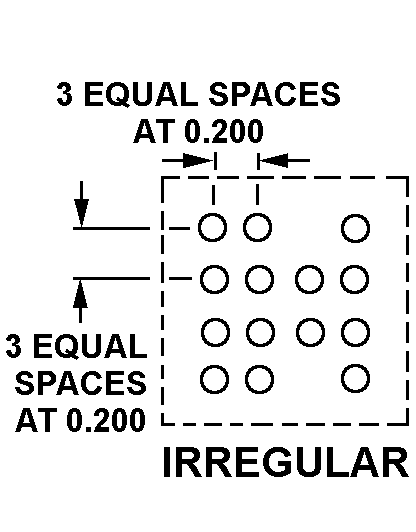

IRREGULAR
Cross Reference | NSN 5935-01-085-3901
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 706381 PIECE 88 | 58475 | L-3 COMMUNICATIONS WESTWOODCORPORATION |
| LS10201-2B | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
| M12883/40-02 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-S-12883/40 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-DTL-12883/40 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 5935-01-085-3901
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IRREGULAR |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 10.0 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | COPPER AND U0000 ANY ACCEPTABLE |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 1.710 INCHES NOMINAL |
| OVERALL HEIGHT | 0.880 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 CRIMP |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | RECTANGULAR, W/THREE MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.075 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 1.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.406 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 0.625 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| FURNISHED ITEMS AND QUANTITY | 3 LOCK WASHER AND 3 NUT AND 3 SCREW AND 3 SPACER AND 3 STUD |
| TEST DATA DOCUMENT | 81349-MIL-S-12883 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
