Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-086-1744 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 4150460005, 415-0460-005, 900334, 27E213, 5935-01-086-1744, 01-086-1744, 5935010861744, 010861744
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 21, 1979 | 01-086-1744 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT
SINGLE MOUNTING HOLE/SLOT

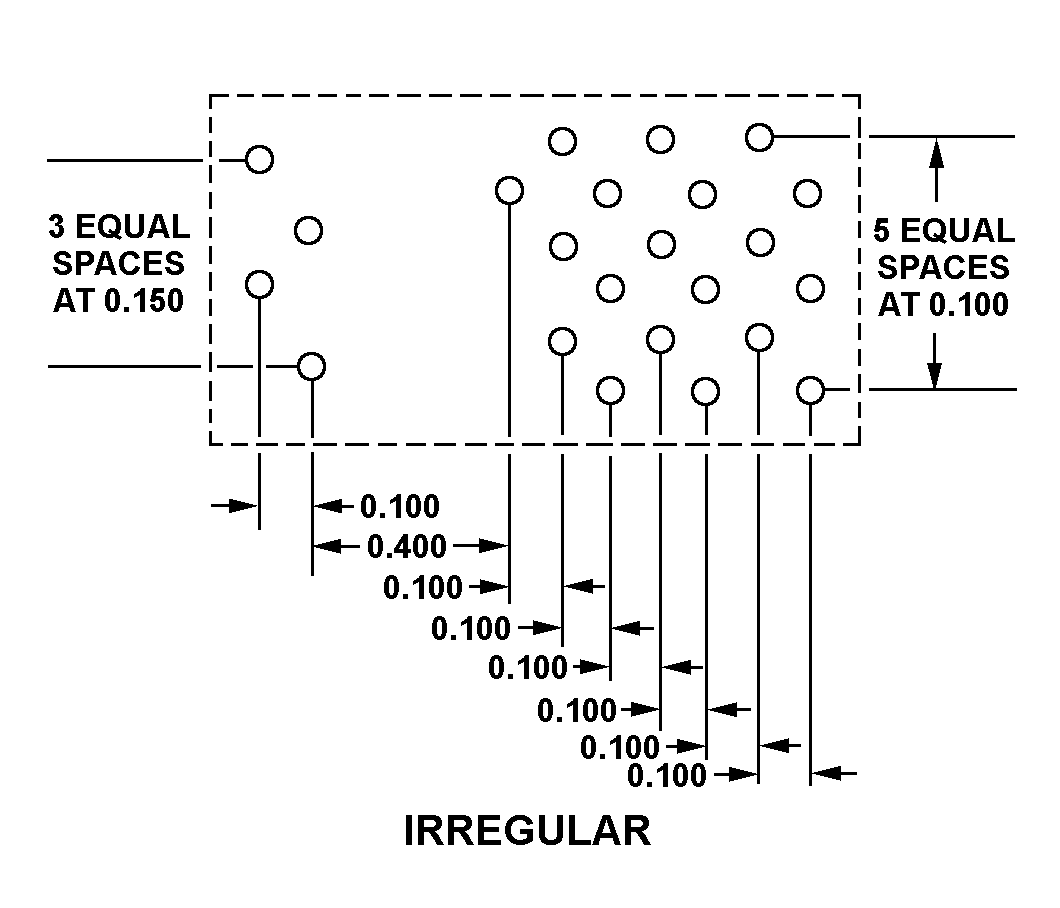

TWENTY THREE HOLE
IRREGULAR
Cross Reference | NSN 5935-01-086-1744
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 415-0460-005 | 94756 | BOEING COMPANY, THEDBA BOEING |
| 900334 | 33013 | LOGIMETRICS INC |
| 27E213 | 77342 | TE CONNECTIVITY CORPORATION |
Technical Data | NSN 5935-01-086-1744
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IRREGULAR |
| ACCOMMODATED CONTACT QUANTITY | 23 |
| MISSING CONTACT DESIGNATION | 23RD CONTACT POSITION |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 10.0 |
| CONTACT MATERIAL | BRASS |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT |
| OVERALL LENGTH | 1.184 INCHES NOMINAL |
| TERMINAL LENGTH | 0.180 INCHES NOMINAL |
| OVERALL HEIGHT | 0.530 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 22 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | B$Z |
| MOUNTING METHOD | UNTHREADED HOLE AND TERMINAL |
| MOUNTING HOLE STYLE | SINGLE MOUNTING HOLE/SLOT |
| MOUNTING HOLE DIAMETER | 0.120 INCHES NOMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | TWENTY THREE HOLE |
| POLARIZATION TYPE | CONTACT POSITION |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.022 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
