5935-01-086-5523 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 1SPS3500517, 1SPS350051-7, 5837737, 583773-7, 5935-01-086-5523, 01-086-5523, 5935010865523, 010865523
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 30, 1979 | 01-086-5523 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |

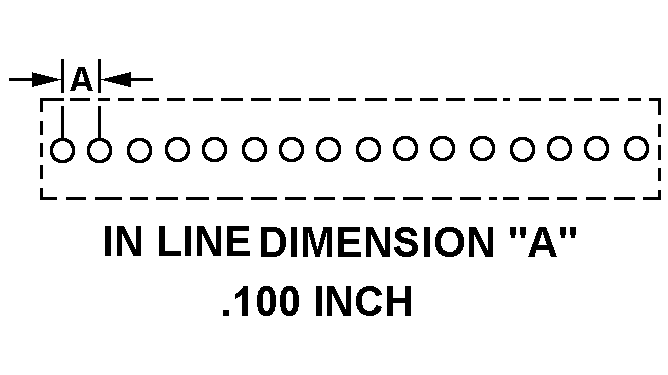

REFERENCE DRAWINGS & PICTURES
RECTANGULAR
IN-LINE
Cross Reference | NSN 5935-01-086-5523
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1SPS350051-7 | 80249 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| 583773-7 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5935-01-086-5523
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 16 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | TIN |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 1.624 INCHES NOMINAL |
| OVERALL WIDTH | 0.170 INCHES NOMINAL |
| BODY MATERIAL | POLYAMIDE NYLON |
| TERMINAL TYPE AND QUANTITY | 16 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | TERMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
