Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-087-8811 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 230472, 23047-2, 230470002, 23047-0002, 230472, 23047-2, 5935-01-087-8811, 01-087-8811, 5935010878811, 010878811
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 29, 1979 | 01-087-8811 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT, PRESS FIT
ROUND, FLATTED

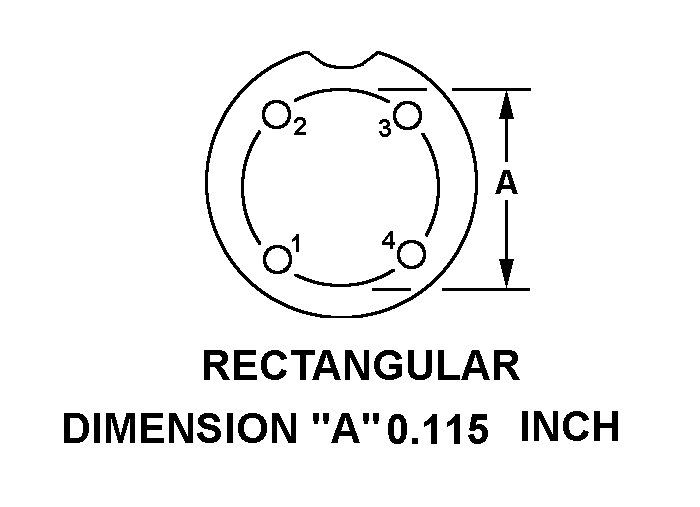

RECTANGULAR
Cross Reference | NSN 5935-01-087-8811
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23047-2 | 06840 | BENDIX CORP THE |
| 23047-0002 | 06840 | BENDIX CORP THE |
| 23047-2 | 14892 | BENDIX CORP THE BRAKE AND STEERINGDIV |
Technical Data | NSN 5935-01-087-8811
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | RECTANGULAR |
| ACCOMMODATED CONTACT QUANTITY | 4 |
| CONTACT MATERIAL | U0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT, PRESS FIT |
| TERMINAL LENGTH | 0.156 INCHES NOMINAL |
| OVERALL HEIGHT | 0.429 INCHES NOMINAL |
| OVERALL DIAMETER | 0.281 INCHES NOMINAL |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.062 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 4 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | PRESS FIT |
| MOUNTING HOLE STYLE | ROUND, FLATTED |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 0.250 INCHES NOMINAL |
| DISTANCE FROM FLATTED PORTION TO OPPOSITE SURFACE | 0.230 INCHES NOMINAL |
