Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-088-9573 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: US216110NB, US-2-16-110-N-B, 5935-01-088-9573, 01-088-9573, 5935010889573, 010889573
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 23, 1980 | 01-088-9573 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT
SIXTEEN HOLE 0.300 INCH

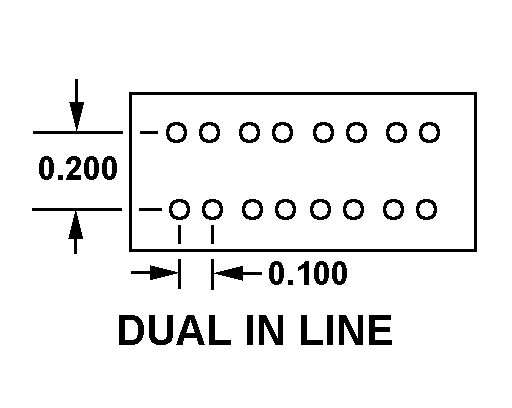

DUAL IN-LINE
Cross Reference | NSN 5935-01-088-9573
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| US-2-16-110-N-B | 18677 | SCANBE MFG CODIV OF ZERO CORP |
Technical Data | NSN 5935-01-088-9573
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 16 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 1.0 |
| CONTACT MATERIAL | COPPER ALLOY |
| BODY STYLE | TOP MOUNT |
| OVERALL LENGTH | 0.796 INCHES NOMINAL |
| TERMINAL LENGTH | 0.130 INCHES NOMINAL |
| OVERALL HEIGHT | 0.145 INCHES NOMINAL |
| OVERALL WIDTH | 0.396 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 16 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | SIXTEEN HOLE 0.300 INCH |
| POLARIZATION TYPE | SLOT |
| FURNISHED ITEMS AND QUANTITY | 2 STANDOFF |
