Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-091-4575 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 112AG4A, 112-AG4A, 7544068P1, 7544068P0001, GS806ES1, 112AG4A, 112-AG4A, 5935-01-091-4575, 01-091-4575, 5935010914575, 010914575
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 08, 1980 | 01-091-4575 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT
TWO MOUNTING HOLES/SLOTS, IN-LINE

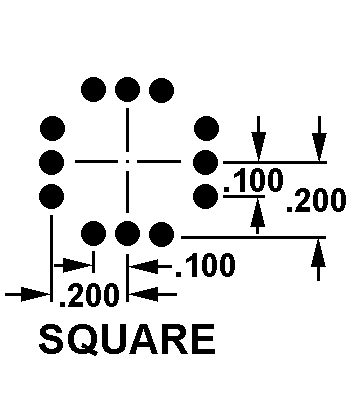

SQUARE
Cross Reference | NSN 5935-01-091-4575
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 112-AG4A | 91506 | AUGAT INC |
| 7544068P1 | 99971 | LOCKHEED MARTIN CORPNAVAL ELECTRONICS & SURVEILLANCE |
| 7544068P0001 | 99971 | LOCKHEED MARTIN CORPNAVAL ELECTRONICS & SURVEILLANCE |
| GS806ES1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
| 112-AG4A | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5935-01-091-4575
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | SQUARE |
| ACCOMMODATED CONTACT QUANTITY | 12 |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT |
| OVERALL LENGTH | 1.125 INCHES NOMINAL |
| TERMINAL LENGTH | 0.220 INCHES NOMINAL |
| OVERALL HEIGHT | 0.532 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 12 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | TWO MOUNTING HOLES/SLOTS, IN-LINE |
| MOUNTING HOLE DIAMETER | 0.116 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.875 INCHES NOMINAL |
