Part Details | ELECTRICAL PLUG CONNECTOR BODY
5935-01-091-7975 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 64069331, 6406933-1, 26296F04M00R00, 26-296F04M00R00, CNA480702P, 154106018, 096050KX, 096050-KX, KX096050, KX-096050, CNA480702P, 83435303, 14807020, 1-480702-0, 5935-01-091-7975, 01-091-7975, 5935010917975, 010917975
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 13, 1980 | 01-091-7975 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

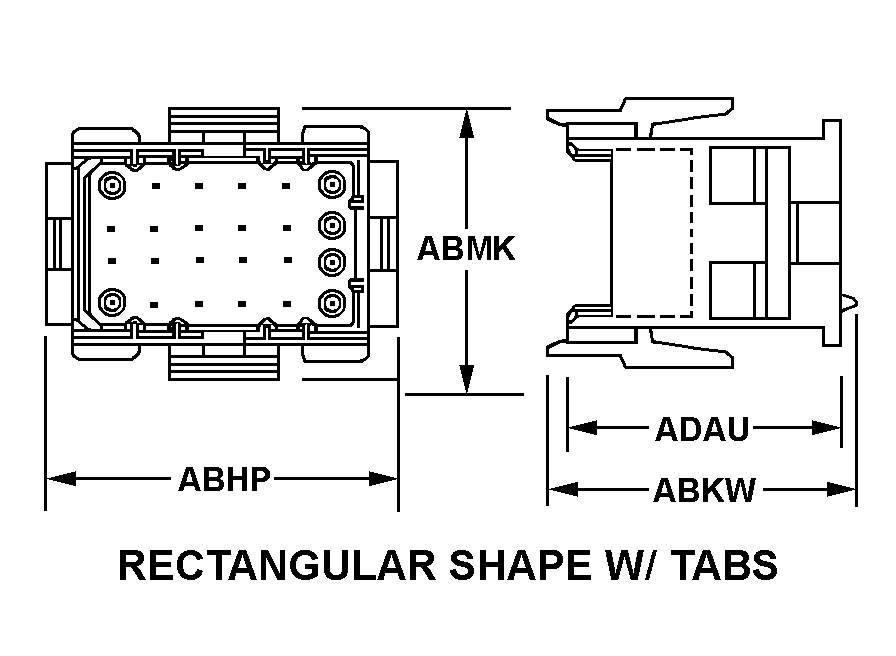

RECTANGULAR SHAPE W/TABS
Cross Reference | NSN 5935-01-091-7975
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6406933-1 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 26-296F04M00R00 | 30331 | CONCURRENT COMPUTER CORPORATION |
| CNA480702P | U0352 | DRS RUGGED SYSTEMS EUROPE LTD |
| 154106018 | 31795 | EATON CORPORATION |
| 096050-KX | K6135 | EATON POWER SOLUTIONS LTD |
| KX-096050 | K6135 | EATON POWER SOLUTIONS LTD |
| CNA480702P | U9638 | LEONARDO TACTICAL SYSTEMSDBA LYNWOOD |
| 83435303 | 59661 | SYNTEGRA / USA/ INCCOMPUTER PARTS AND SUPPLIES |
| 1-480702-0 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5935-01-091-7975
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RECTANGULAR SHAPE W/TABS |
| OVERALL LENGTH | 1.050 INCHES NOMINAL |
| OVERALL HEIGHT | 1.080 INCHES NOMINAL |
| OVERALL WIDTH | 0.580 INCHES NOMINAL |
| BODY HEIGHT | 1.080 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | LATCH |
| MATING END QUANTITY | 1 |
