Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-092-7182 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 7110125303, 71-10-1253-03, 311092, 7110125303, 71-10-1253-03, 311092, 7110125303, 71-10-1253-03, 5935-01-092-7182, 01-092-7182, 5935010927182, 010927182
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 01, 1980 | 01-092-7182 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

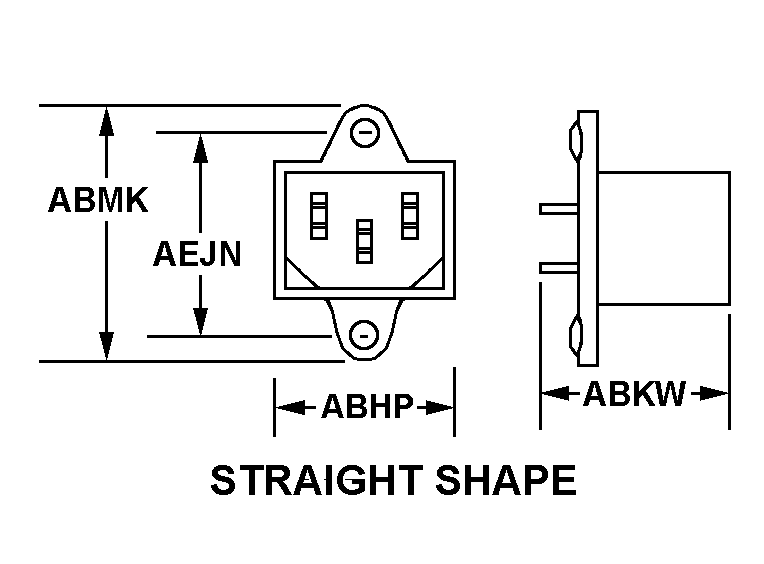

STRAIGHT SHAPE
Cross Reference | NSN 5935-01-092-7182
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 71-10-1253-03 | K1601 | A B ELECTRONICS PRODUCTS GROUP PLC |
| 311092 | K1601 | A B ELECTRONICS PRODUCTS GROUP PLC |
| 71-10-1253-03 | K2323 | AB CONNECTORS LIMITEDDBA TT ELECTRONICS |
| 311092 | K2323 | AB CONNECTORS LIMITEDDBA TT ELECTRONICS |
| 71-10-1253-03 | 16236 | DLA LAND AND MARITIMEDBA ENGINEERING AND TECHNICAL |
Technical Data | NSN 5935-01-092-7182
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE |
| OVERALL LENGTH | 1.281 INCHES NOMINAL |
| OVERALL HEIGHT | 1.750 INCHES NOMINAL |
| OVERALL WIDTH | 1.562 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.250 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.152 INCHES MINIMUM AND 0.155 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | SPRING FRICTION |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.344 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| SHELL TYPE | HOOD, TOP OPENING |
| SHELL MATERIAL | ALUMINUM ALLOY |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | HUMIDITY RESISTANT |
| OPERATING TEMP RATING | -40.0 DEG CELSIUS MINIMUM AND 100.0 DEG CELSIUS MAXIMUM |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.012 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
