Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-094-1402 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: SE4102A, SE410-2A, SE4102A, SE410-2A, 5935-01-094-1402, 01-094-1402, 5935010941402, 010941402
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 03, 1980 | 01-094-1402 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
RECTANGULAR
IRREGULAR

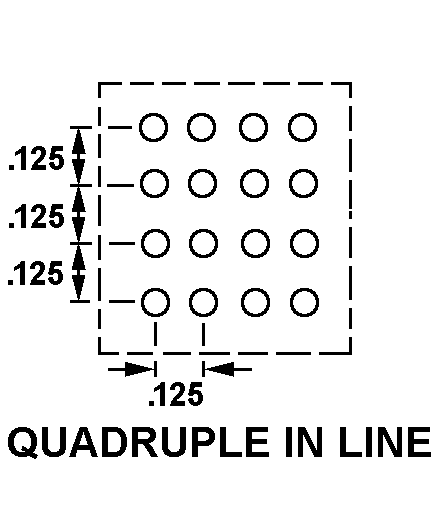

QUADRUPLE IN LINE
Cross Reference | NSN 5935-01-094-1402
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SE410-2A | 99699 | DRI RELAYS INC. |
| SE410-2A | 11139 | TE CONNECTIVITY CORPORATIONDBA DEFENSE AEROSPACE OPERATIONS |
Technical Data | NSN 5935-01-094-1402
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | QUADRUPLE IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 16 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 2.0 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND NICKEL |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 1.710 INCHES NOMINAL |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.130 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 16 CRIMP |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING HOLE STYLE | IRREGULAR |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 40 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION TYPE | CONTACT POSITION |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.016 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
