Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-097-9424 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 13901ST, 1390-1ST, 5935-01-097-9424, 01-097-9424, 5935010979424, 010979424
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 23, 1980 | 01-097-9424 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT
RECTANGULAR

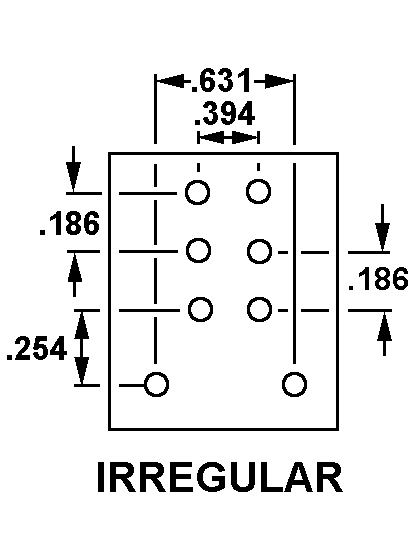

IRREGULAR
Cross Reference | NSN 5935-01-097-9424
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1390-1ST | 81844 | ELECTRONIC CONTROLS CORPORATION |
Technical Data | NSN 5935-01-097-9424
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IRREGULAR |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 13.0 |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT |
| OVERALL LENGTH | 1.150 INCHES NOMINAL |
| OVERALL HEIGHT | 0.787 INCHES NOMINAL |
| OVERALL WIDTH | 0.843 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | PRESS FIT |
| MOUNTING HOLE STYLE | RECTANGULAR |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 0.992 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.843 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.008 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
