Part Details | ELECTRICAL CONNECTOR JACKSCREW
5935-01-099-8744 A locking device specifically designed to secure engaged electrical connectors. Its mating end is either internally or externally threaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. It may be equipped with a knob, slotted head, knurled head, or the like.
Alternate Parts: 912431, 912431, 5935-01-099-8744, 01-099-8744, 5935010998744, 010998744
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 26, 1980 | 01-099-8744 | 36340 ( JACKSCREW, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

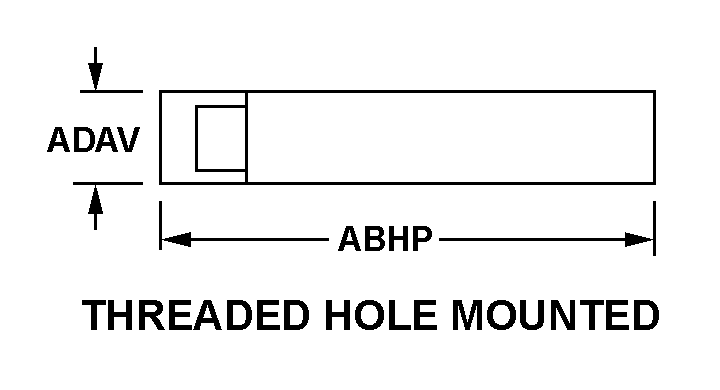

THREADED HOLE MOUNTED
Cross Reference | NSN 5935-01-099-8744
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 912431 | 49956 | RAYTHEON COMPANYDBA RAYTHEON |
| 912431 | 3B150 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5935-01-099-8744
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | THREADED HOLE MOUNTED |
| OVERALL LENGTH | 0.648 INCHES NOMINAL |
| OVERALL DIAMETER | 0.317 INCHES MINIMUM AND 0.323 INCHES MAXIMUM |
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 40 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.170 INCHES |
