Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-102-8863 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 71016CCB, 710-16-CC-B, S0116GKAHH, 1900068002, 19-00068-002, 1860811, 186081-1, 5935-01-102-8863, 01-102-8863, 5935011028863, 011028863
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 30, 1980 | 01-102-8863 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT

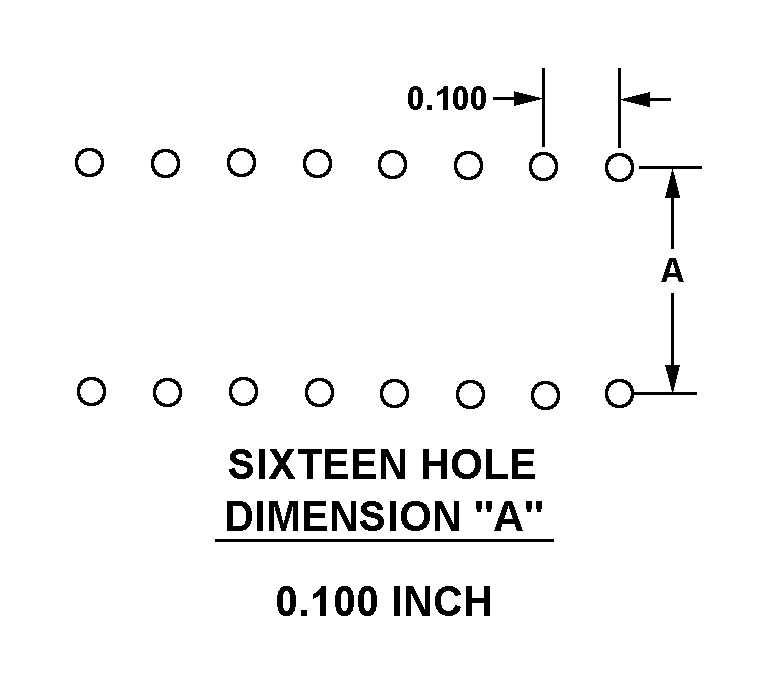

SIXTEEN HOLE 0.100 INCH
Cross Reference | NSN 5935-01-102-8863
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 710-16-CC-B | 19112 | COOPER CROUSE-HINDS, LLCDBA GARRY ELECTRONICS |
| S0116GKAHH | 60197 | GBENJO LAW GROUP THE |
| 19-00068-002 | 00724 | RAYTHEON COMPANYDBA RAYTHEON |
| 186081-1 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5935-01-102-8863
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED CONTACT QUANTITY | 16 |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT |
| OVERALL LENGTH | 0.850 INCHES NOMINAL |
| TERMINAL LENGTH | 0.125 INCHES NOMINAL |
| OVERALL HEIGHT | 0.290 INCHES NOMINAL |
| OVERALL WIDTH | 0.185 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 16 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | SIXTEEN HOLE 0.100 INCH |
| POLARIZATION TYPE | SLOT |
