Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-104-5702 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: SC116GKBHH, 1860821, 186082-1, 5935-01-104-5702, 01-104-5702, 5935011045702, 011045702
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 06, 1980 | 01-104-5702 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
PCB, STANDOFF TERMINALS

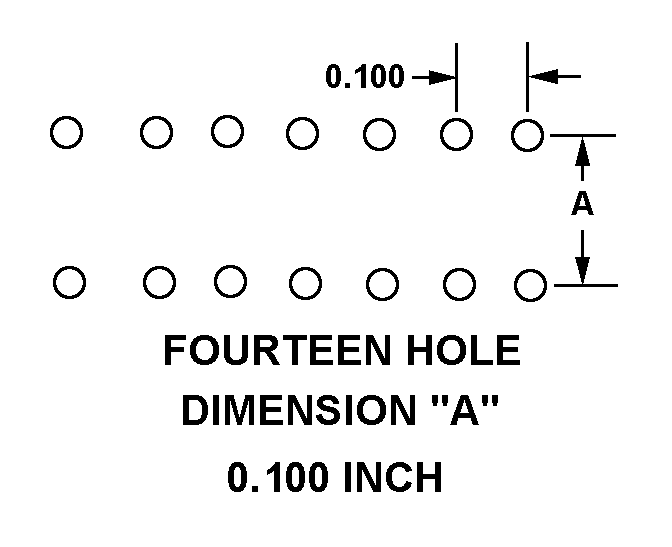

FOURTEEN HOLE
DUAL IN-LINE
Cross Reference | NSN 5935-01-104-5702
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SC116GKBHH | 60197 | GBENJO LAW GROUP THE |
| 186082-1 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5935-01-104-5702
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE |
| BODY STYLE | PCB, STANDOFF TERMINALS |
| OVERALL LENGTH | 0.850 INCHES NOMINAL |
| TERMINAL LENGTH | 0.130 INCHES NOMINAL |
| OVERALL HEIGHT | 0.418 INCHES NOMINAL |
| OVERALL WIDTH | 0.200 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | FOURTEEN HOLE |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.014 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
