NSN 5935-01-108-7331

Part Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-01-108-7331 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Alternate Parts: 5086C20, 50-86C-20, 2524330360, 252-43-30-360, 009009025, 009-00902-5, 335281, 5935-01-108-7331, 01-108-7331, 5935011087331, 011087331

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59MAR 05, 198101-108-733115093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )
REFERENCE DRAWINGS & PICTURES

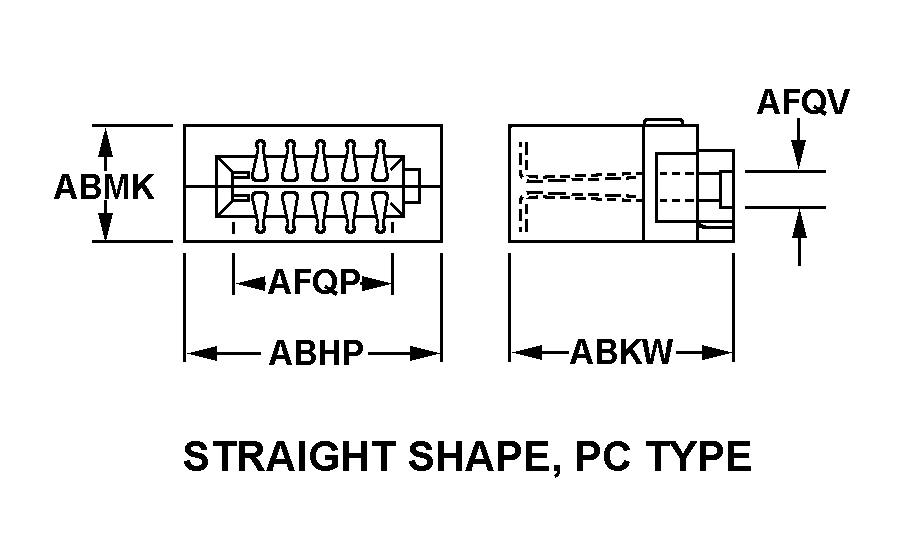

STRAIGHT SHAPE, PC TYPE

Cross Reference | NSN 5935-01-108-7331
Part Number Cage Code Manufacturer
50-86C-2071785CINCH CONNECTORS, INC.
252-43-30-36071785CINCH CONNECTORS, INC.
009-00902-571785CINCH CONNECTORS, INC.
33528189536FLUKE CORPORATION
Technical Data | NSN 5935-01-108-7331
Characteristic Specifications
BODY STYLE STRAIGHT SHAPE, PC TYPE
OVERALL LENGTH4.550 INCHES MINIMUM AND 4.570 INCHES MAXIMUM
OVERALL HEIGHT0.719 INCHES NOMINAL
OVERALL WIDTH0.350 INCHES NOMINAL
BOARD ACCOMMODATED WIDTH0.054 INCHES MINIMUM AND 0.071 INCHES MAXIMUM
CONNECTOR LOCKING METHOD FRICTION
MATING END QUANTITY1
PRECIOUS MATERIAL GOLD
PRECIOUS MATERIAL AND WEIGHT0.086 GOLD GRAINS, TROY
PRECIOUS MATERIAL AND LOCATIONCONTACT SURFACES GOLD
