Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-112-8435 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 136051301, 136-0513-01, 5935-01-112-8435, 01-112-8435, 5935011128435, 011128435
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 11, 1981 | 01-112-8435 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TV TUBE MOUNT
TWO MOUNTING HOLES/SLOTS, IN-LINE

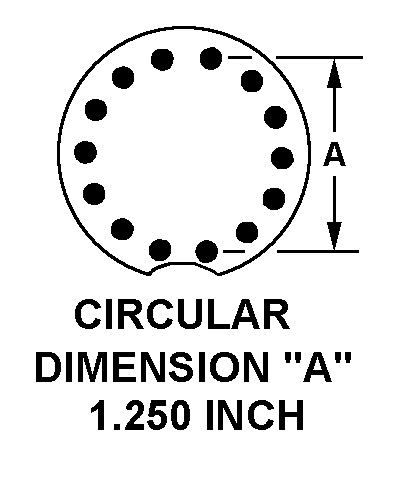

CIRCULAR
Cross Reference | NSN 5935-01-112-8435
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 136-0513-01 | 80009 | TEKTRONIX, INC.DBA TEKTRONIX |
Technical Data | NSN 5935-01-112-8435
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MATERIAL | COPPER |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | TV TUBE MOUNT |
| OVERALL HEIGHT | 0.562 INCHES NOMINAL |
| OVERALL DIAMETER | 1.750 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 10 WIRE LEAD |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | TWO MOUNTING HOLES/SLOTS, IN-LINE |
| MOUNTING HOLE DIAMETER | 0.093 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.468 INCHES NOMINAL |
| POLARIZATION TYPE | CENTER KEY HOLE |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
